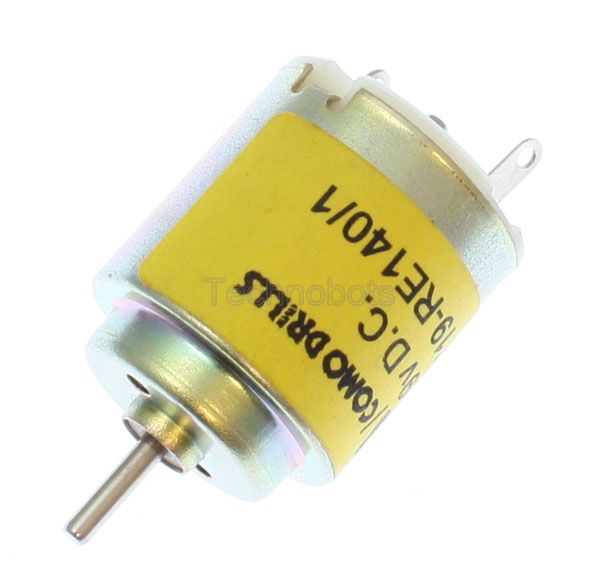

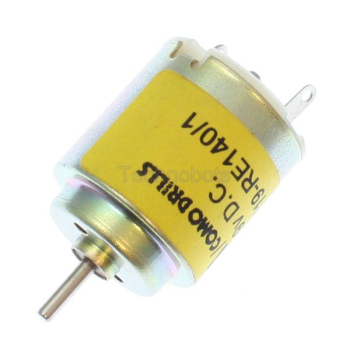

3 to 9V, 0.6W 3-pole motor
See 'Details' tab for specification and dimensions
Bracket for this motor
| 1401-003 / 4 Motor Performance | |||||
| Nominal Voltage | Current (A) | Torque (g/cm) | Speed (rpm) | Efficiency (%) | O/P Power (W) |
| 6.0 | 0.066 | 0 | 9200 | No Load | |
| 6.0 | 0.219 | 8.1 | 7071 | 44.2 max | 0.589 |
| 6.0 | 35.1 Stall | 0 | 0 | ||

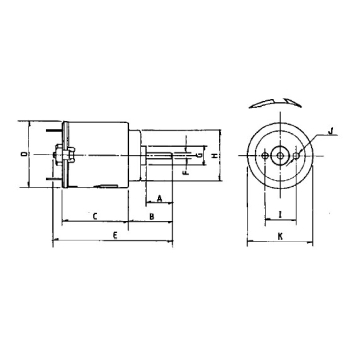

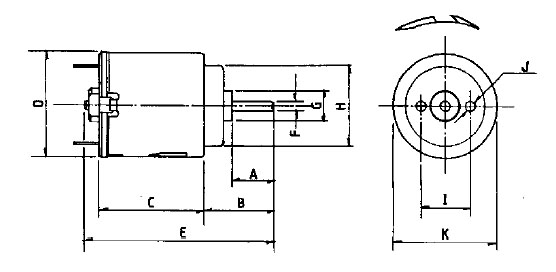

| Dimensions (mm) See Drawing | ||||||||||
| A | B | C | D | E | F | G | H | I | J | K |
| 8.3 | 14.0 | 21.0 | 21.0 | 38.0 | 2.0 | 6.15 | 16.0 | 10.0 | 2.0 | 20.15 |
| Code |
Voltage Range (V) / Nominal (V) |
Nominal Full Load Current (A) |
Nominal Speed (rpm) |
Nominal Torque (g/cm) |
Nominal O/P Power (W) |
Efficiency (%) |
Comments |
| 1451-018 | 1.5-3 / 3 | 17.6mA Free | 20,300 Free | ||||
| 1451-017 | 1.5-5 / 3 | 22mA Free | 18,420 Free | ||||
| 1400-020 | 1.5-4.5 / 3 | 1.1 | 13,100 | 8 | |||
| 1400-021 | 1.5-4.5 / 3 | 0.45 | 5,250 | 10.5 | 0.56 | 51.9 | |
| 1400-022 | 1.5-4.5 / 3 |
1.05 | 11,500 |
10.9 |
|||
| 1400-023 |
1.5-6 / 3 |
1.14 |
7,790 |
19.9 |
1.58 |
||
| 1400-024 |
12-24 / 12 |
1.3 |
14,350 |
65 |
|
||
| 1400-027 |
1.5-0 / 5 |
0.12 | 2,540 |
12.6 |
0.33 |
54 | |
| 1400-028 |
1.5-12 / 6 |
84mA |
2,180 |
11.6 |
0.26 |
50 |
|
| 1400-015 |
12-18 / 18 |
1.02 |
15,660 |
69 |
11.01 |
||
| 1400-016 |
6-12 / 9 |
4.63 |
14,070 |
236.5 |
34.13 |
||
| 1401-001 |
1.5-3 / 3 |
0.96 |
11,300 |
10.4 |
1.21 |
42 |
|
| 1401-002 |
1.5-3 / 3 |
0.96 |
11,300 |
10.4 |
1.21 |
42 |
+ Bracket |
| 1401-003 |
3-9 / 6 |
0.219 |
7,071 |
8.1 |
0.589 |
44.2 |
|
| 1401-004 |
3-9 / 6 |
0.219 |
7,071 |
8.1 |
0.589 |
44.2 |
+ Bracket |
| 1401-005 |
1.5-3 / 3 |
0.85 |
7,800 |
20 |
1.6 |
62.3 |
|
| 1401-006 |
1.5-3 / 3 |
0.85 |
7,800 |
20 |
1.6 |
62.3 |
+ Bracket |
| 1401-007 |
12-24 / 12 |
0.3 |
6,300 |
25 |
1.62 |
44.87 |
|
| 1401-008 |
12-24 / 12 |
0.3 |
6,300 |
25 |
1.62 |
44.87 |
+ Bracket |
| 1401-009 |
6-15 / 12 |
0.77 |
9,511 |
58.8 |
5.75 |
61.94 |
|
| 1401-010 |
6-15 / 12 |
0.77 |
9,511 |
58.8 |
5.75 |
61.94 |
+ Bracket |
| 1401-011 |
3-7.2 / 7.2 |
4.41 |
19,000 |
375 |
19.68 |
62 |
|
| 1401-012 |
3-7.2 / 7.2 |
4.41 |
19,000 |
375 |
19.68 |
62 |
+ Bracket |
| 1401-013 |
6-15 / 12 |
0.837 |
9,821 |
65.3 |
6.21 |
61.85 |
|
| 1401-014 |
6-15 / 12 |
0.837 |
9,821 |
65.3 |
6.21 |
61.85 |
+ Bracket |
| 1401-015 |
3-9 / 6 |
7.1 |
10,800 |
254 |
28.1 |
66 |
|
| 1401-016 |
3-9 / 6 |
7.1 |
10,800 |
254 |
28.1 |
66 |
+ Bracket |
| 1401-017 |
4.5-15 / 12 |
2.85 |
13,360 |
154.4 |
21.2 |
61.9 |
|
| 1401-018 |
4.5-15 / 12 |
2.85 |
13,360 |
154.4 |
21.2 |
61.9 |
+ Bracket |
| 1401-019 |
3-9 / 6 |
6.06 |
10,516 |
229 |
34.78 |
48.75 |
|
| 1401-020 | 3-9 / 6 | 6.06 | 10,516 | 229 | 34.78 | 48.75 | + Bracket |
| 1401-022 | 12 / 12 | 5.28 | 4,289 | 82.08 | 36.84 | 58.2 | |
| 1401-023 | 12 / 12 | 5.28 | 4,289 | 82.08 | 36.84 | 58.2 | + Bracket |
| 1401-024 |
12 / 12 |
10.82 |
8,311 |
93.13 |
80.16 |
61.74 |
|
| 1401-025 |
12 / 12 |
10.82 |
8,311 |
92.13 |
80.16 |
61.74 |
+ Bracket |
| All Data best to our knowledge and derived from manufacturers datasheets |
|||||||
Features
