MXL025 Timing Pulleys

Moulded imperial timing pulleys with a pitch of 2.032mm (0.08") with either an Aluminium or Brass insert complete with a M3 grub screw for fixing to the shaft. Made from a glass filled Polycarbonate. Use with our MXL025 belts

Dimensions
Part No. Type Teeth PCD De Df Dm Fw L Pw K Bore d Stocked
4630-018 A 18 11.63 11.13 16 13 8 17.5 11 M3 5mm Yes
4630-020 A 20 12.93 12.42 17 13 8 17.5 11 M3 5mm Yes
4630-021 B 21 13.59 13.08 18 13 8 17.5 11 M3 5mm No
4630-022 B 22 14.22 13.72 19 13 8 17.5 11 M3 5mm No
4630-024 B 24 15.52 15.01 20 13 8 17.5 11 M3 5mm No
4630-028 B 28 18.11 17.6 22 13 8 17.5 11 M3 5mm No
4630-030 B 30 19.4 18.89 24 13 8 17.5 11 M3 5mm Yes
4630-032 B 32 20.7 20.19 25 13 8 17.5 11 M3 5mm No
4630-036 B 36 23.29 22.78 28 13 8 17.5 11 M3 5mm No
4630-040 C 40 25.88 25.37 30 17 8 17.5 11 M3 5mm Yes
4630-042 C 42 27.18 26.67 31 17 8 17.5 11 M3 5mm No
4630-044 C 44 28.45 27.94 33 17 8 17.5 11 M3 5mm No
4630-048 C 48 31.04 30.53 35 17 8 17.5 11 M3 5mm Yes
4630-060 C 60 38.81 38.3 43 17 8 17.5 11 M3 6mm Yes
4630-065 C 65 42.04 41.53 46 17 8 17.5 11 M3 6mm No
4630-072 C 72 46.56 46.05 51 17 8 17.5 11 M3 6mm No
4630-080 C 80 51.74 51.23 56 17 8 17.5 11 M3 6mm Yes
4630-090 C 90 58.22 57.71 63 17 8 17.5 11 M3 6mm No
4630-100 C 100 64.67 64.61 69 17 8 17.5 11 M3 6mm No
4630-110 C 110 71.15 70.63 75 17 8 17.5 11 M3 6mm No
4630-120 C 120 77.62 77.11 82 17 8 17.5 11 M3 6mm No
4630-130 C 130 84.07 83.57 88 17 8 17.5 11 M3 6mm No

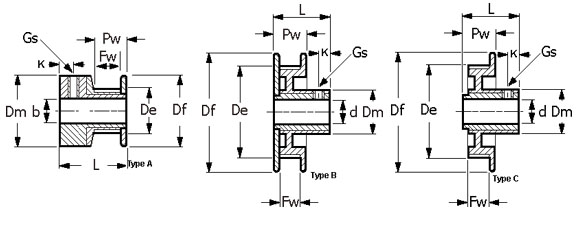

The above table refers to the following images (Type A, B and C)



Sort by Position: Low to High
50 Per Page
MXL025 Plastic Timing Pulley 18 Teeth Alu Ins
MXL025 Plastic Timing Pulley 18 Teeth Alu Ins
£6.49 (£7.79 UK, incl VAT)
4630-018
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
Out of stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 20 Teeth Alu Ins
MXL025 Plastic Timing Pulley 20 Teeth Alu Ins
£9.38 (£11.26 UK, incl VAT)
4630-020
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 24 Teeth Alu Ins
MXL025 Plastic Timing Pulley 24 Teeth Alu Ins
£9.66 (£11.59 UK, incl VAT)
4630-024
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 28 Teeth Alu Ins
MXL025 Plastic Timing Pulley 28 Teeth Alu Ins
£9.85 (£11.82 UK, incl VAT)
4630-028
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 30 Teeth Alu Ins
MXL025 Plastic Timing Pulley 30 Teeth Alu Ins
£9.94 (£11.93 UK, incl VAT)
4630-030
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 36 Teeth Alu Ins
MXL025 Plastic Timing Pulley 36 Teeth Alu Ins
£10.10 (£12.12 UK, incl VAT)
4630-036
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 40 Teeth Brass Ins
MXL025 Plastic Timing Pulley 40 Teeth Brass Ins
£10.13 (£12.16 UK, incl VAT)
4630-040
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 48 Teeth Brass Ins
MXL025 Plastic Timing Pulley 48 Teeth Brass Ins
£10.30 (£12.36 UK, incl VAT)
4630-048
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 60 Teeth Brass Ins
MXL025 Plastic Timing Pulley 60 Teeth Brass Ins
£10.33 (£12.40 UK, incl VAT)
4630-060
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 80 Teeth Brass Ins
MXL025 Plastic Timing Pulley 80 Teeth Brass Ins
£10.52 (£12.62 UK, incl VAT)
4630-080
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 90 Teeth Brass Ins
MXL025 Plastic Timing Pulley 90 Teeth Brass Ins
£11.66 (£13.99 UK, incl VAT)
4630-090
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 100 Teeth Brass Ins
MXL025 Plastic Timing Pulley 100 Teeth Brass Ins
£11.87 (£14.24 UK, incl VAT)
4630-100
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 110 Teeth Brass Ins
MXL025 Plastic Timing Pulley 110 Teeth Brass Ins
£12.04 (£14.45 UK, incl VAT)
4630-110
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 120 Teeth Brass Ins
MXL025 Plastic Timing Pulley 120 Teeth Brass Ins
£14.30 (£17.16 UK, incl VAT)
4630-120
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
MXL025 Plastic Timing Pulley 130 Teeth Brass Ins
MXL025 Plastic Timing Pulley 130 Teeth Brass Ins
£13.47 (£16.16 UK, incl VAT)
4630-130
A glass filled polycarbonate MXL025 timing pulley complete with M3 grub screw for shaft fixing. For dimensions, see main page or by clicking on 'MXL025...
In stock
+ −
Add to wish list
