Model Motor Size J

£3.08
(£3.70 UK, incl VAT)
Price in points: 616 points
1400-028
45 g
In stock
+
Add to wish list

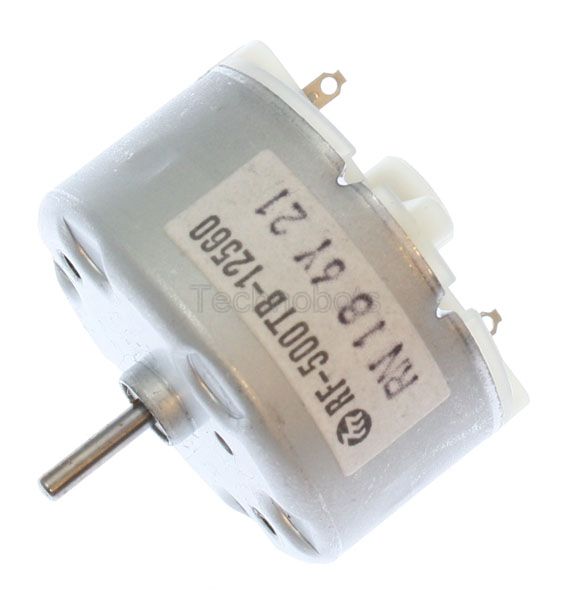

Model number: RF-500TB-12560.



Specifications
Voltage Range:1.5V to 12V
Rated Voltage:6V
Rated Power:0.26W
No Load Current:0.02A
Rated Load Current:0.084A
Rated Load Speed:2,180 RPM
Torque:11.6 g/cm
Stall Torque:60g/cm
Body Diameter:32mm
Body Length:19.5mm
Spindle Length:8.8mm
Spindle Diameter:2mm

Downloads

No posts found

Write a review

The photo shown and the datasheet that's linked to both suggest that this motor is made by Mabuchi. Can you confirm that this is a genuine Mabuchi motor please, and not a "clone".

Asked by Steve | 26/09/2017, 00:04 | 1 answer(s)

What screws can be used to mount this motor?

Asked by Peter Haugh | 19/04/2015, 17:36 | 1 answer(s)

What mounting bracket can I use for this motor?

Asked by Peter Duggan | 20/10/2014, 10:17 | 1 answer(s)
