Shaft Support Mount SHF16 for Linear Guide Rails - 16mm

£4.55
(£5.46 incl VAT)
Price in points: 910 points
4604-316
In stock
+
Our quantity discounts:
Quantity 10+ 50+
Price £4.10 £3.64

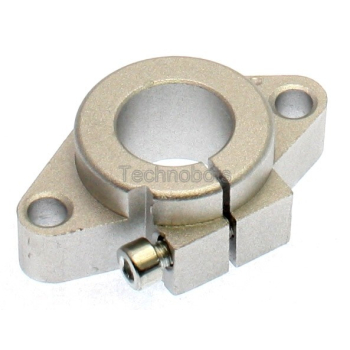

A flange style aluminium mount for round guide rails of 16mm diameter as typically used for CNC linear bearings.

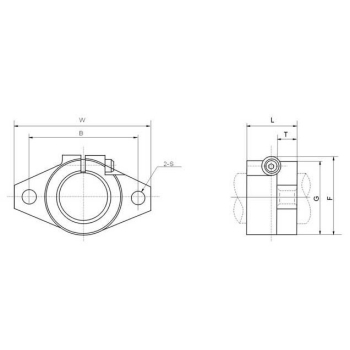

See image for the dimensions drawing:

  • Shaft Diameter: 16mm
  • W: 50mm
  • L: 16mm
  • T: 8mm
  • F: 31mm
  • G: 28mm
  • B: 40mm
  • S: 5.5mm
  • Clamping Bolt: M4
  • Mounting Bolt (Not Supplied): M5
