En8 zinc plated steel unsplit Shaft Collars in Metric Bore. Type CABU supplied with setscrew(s).

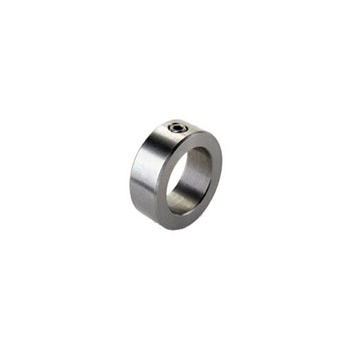

Zinc Collar 8x16x8mm
Zinc Collar 8x16x8mm

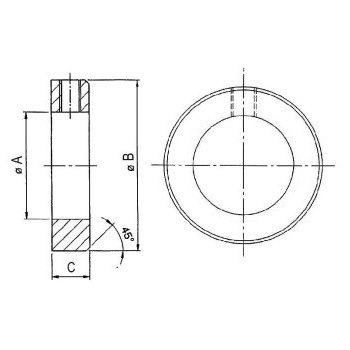

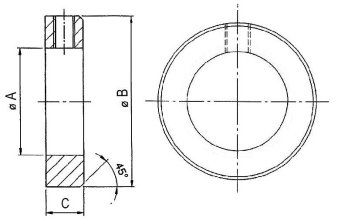

Part No. | 4609-065 |
Code | WHCABU08Z |
Bore A | 8 |
Diameter B | 16 |
Width C | 8 |
Setscrew D | M4 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
