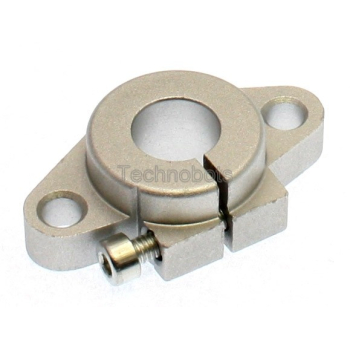

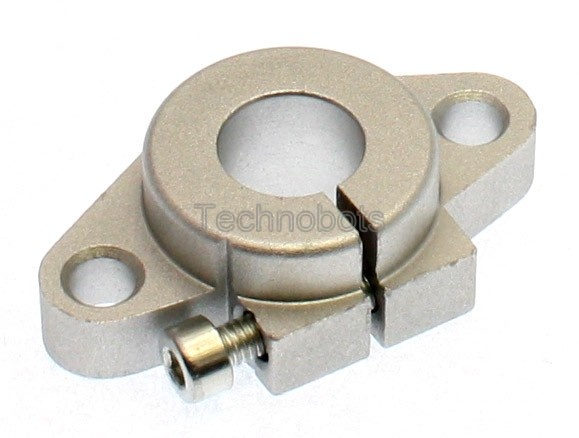

A flange style aluminium mount for round guide rails of 12mm diameter as typically used for CNC linear bearings.

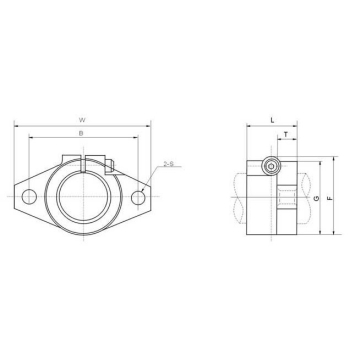

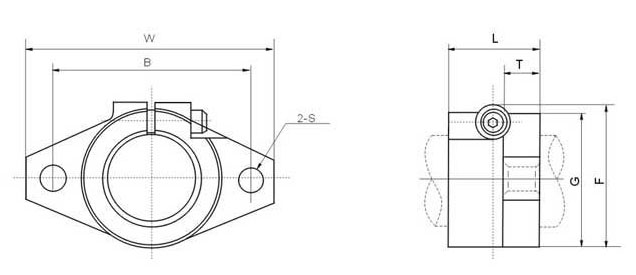

See image for the dimensions drawing:
- Shaft Diameter: 12mm
- W: 47mm
- L: 13mm
- T: 7mm
- F: 28mm
- G: 25mm
- B: 36mm
- S: 5.5mm
- Clamping Bolt: M4
- Mounting Bolt (Not Supplied): M5
