Makertronics Shaft Support Mount SHF10 for Linear Guide Rails - 10mm

£2.07
(£2.48 UK, incl VAT)
4604-310
18 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

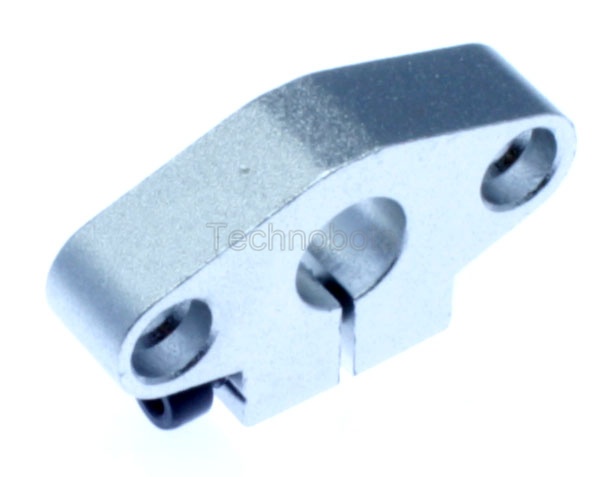

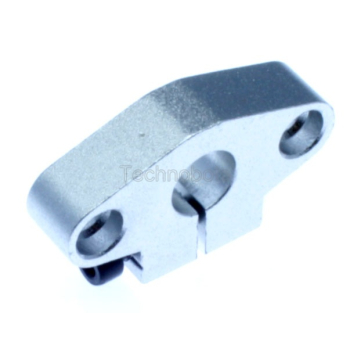

A flange style aluminium mount for round guide rails of 10mm diameter as typically used for CNC linear bearings.

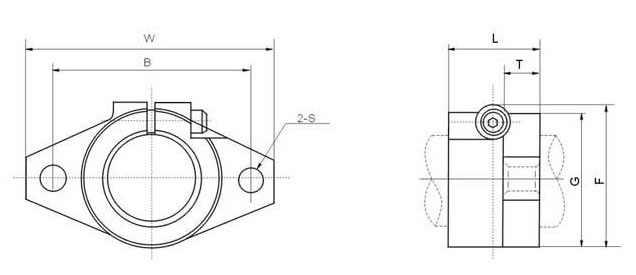

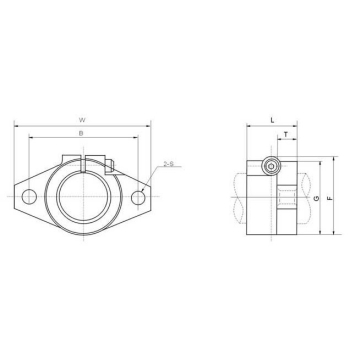

See image for the dimensions drawing:

  • Shaft Diameter: 10mm
  • W: 43mm
  • L: 10mm
  • T: 5mm
  • F: 24mm
  • G: 20mm
  • B: 32mm
  • S: 5.5mm
  • Clamping Bolt: M4
  • Mounting Bolt (Not Supplied): M5
