Makertronics Shaft Support Mount SHF20 for Linear Guide Rails - 20mm

£3.10
(£3.72 UK, incl VAT)
Price in points: 620 points
4604-320
50 g
Out of stock
+
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

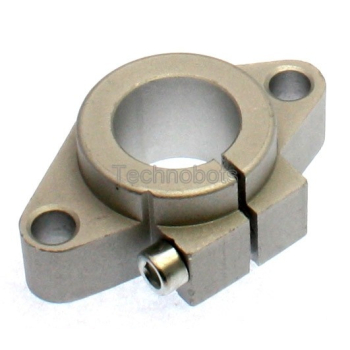

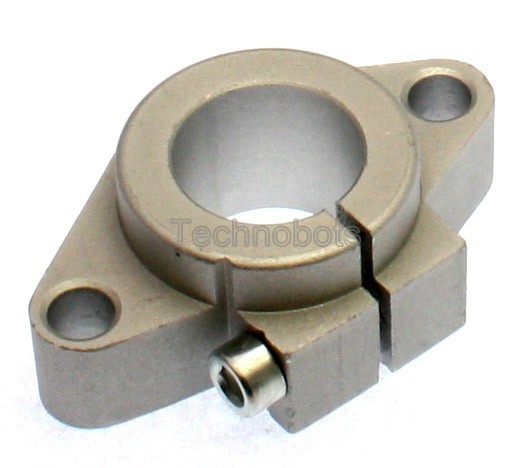

A flange style aluminium mount for round guide rails of 20mm diameter as typically used for CNC linear bearings.

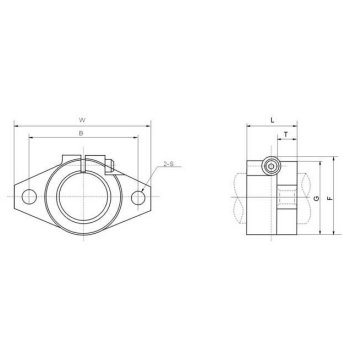

See image for the dimensions drawing:

  • Shaft Diameter: 20mm
  • W: 60mm
  • L: 20mm
  • T: 8mm
  • F: 37mm
  • G: 34mm
  • B: 48mm
  • S: 7mm
  • Clamping Bolt: M5
  • Mounting Bolt (Not Supplied): M6
