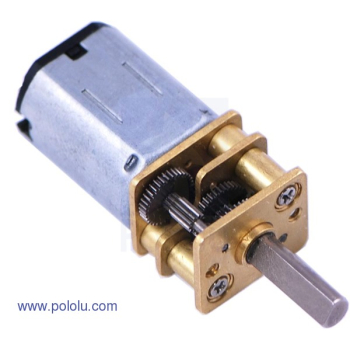

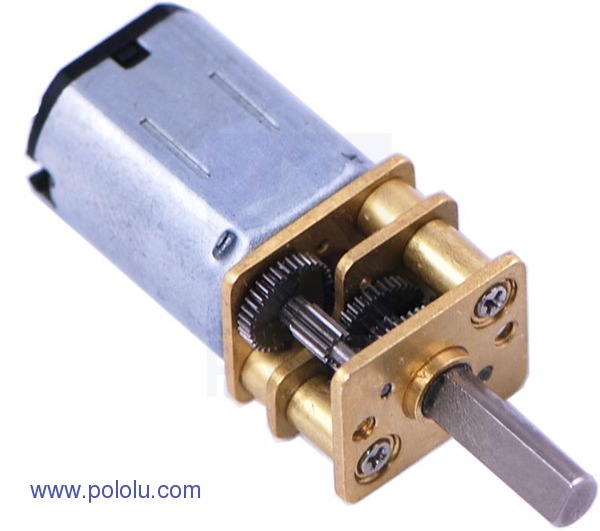

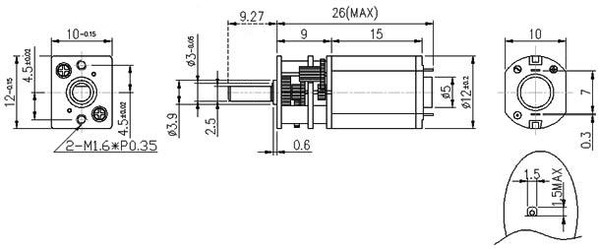

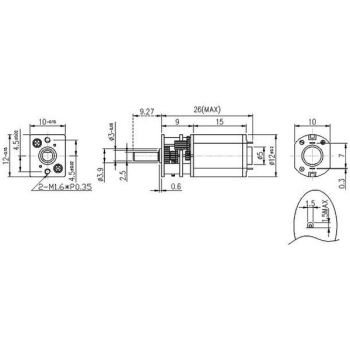

This gearmotor is a miniature 24 x 12 x 10mm, low-current brushed DC motor with 51.45:1 metal gearbox, similar to Sanyo’s popular 12 mm gearmotors. These units have a 9.3mm long, 3 mm-diameter D-shaped output shaft.
Key specs at 6 V: 420 RPM and 40 mA free-run, 0.54kg.cm (7.5 oz-in) and 0.7 A stall.
