Pololu 380:1 Micro Metal Gearmotor HPCB 12V

List price: £24.47
£17.09
(£20.51 UK, incl VAT) You save: £7.38 (30%)
Price in points: 3418 points
1451-471
10 g
1 item(s)
End of Line
+
Add to wish list

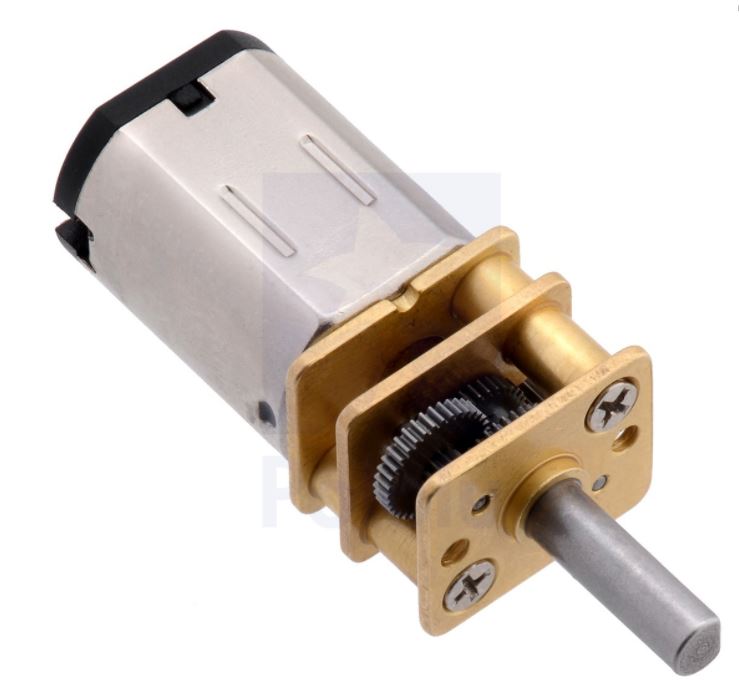

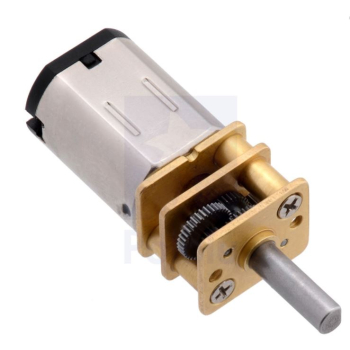

This gearmotor is a miniature high-power, 12V brushed DC motor with long-life carbon brushes and a 379.17:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specs at 12V: 85 RPM and 60 mA free-run, 5.0kg.cm (69 oz-in) and 0.75A stall.

The HPCB versions (shown on the left) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

 HPCB Motors

HPCB

With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.

 Note: Stalling or overloading gearmotors can greatly decrease their lifetimes and even result in immediate damage. The recommended upper limit for instantaneous torque is 2.5 kg-cm (35 oz-in) for the 380:1 and 1000:1 gearboxes, and 2 kg-cm (25 oz-in) for all the other gear ratios; we strongly advise keeping applied loads well under this limit. Stalls can also result in rapid (potentially on the order of seconds) thermal damage to the motor windings and brushes, especially for the versions that use high-power (HP and HPCB) motors; a general recommendation for brushed DC motor operation is 25% or less of the stall current.
