Makertronics Pillar Shaft Support Mount for Linear Guide Rails,8mm,SK8UU

£0.99
(£1.19 UK, incl VAT)
Price in points: 198 points
4604-208
28 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

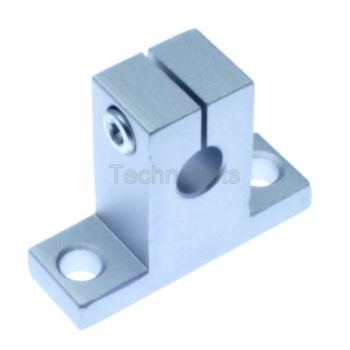

A pillow style aluminium mount for round guide rails of 8mm diameter as typically used for CNC linear bearings.

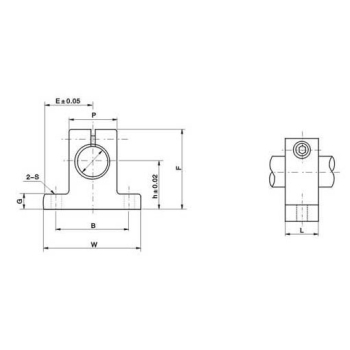

See image for the dimensions drawing:

  • Shaft Diameter: 8mm
  • h: 20mm
  • E: 21mm
  • W: 42mm
  • L: 14mm
  • F: 33mm
  • G: 6mm
  • P: 18mm
  • B: 32mm
  • S: 5.5mm
  • Clamp Bolt: M4
  • Mounting Bolt (not included): M5
