From our Makertronics branded range of products at Everyday Low Prices.

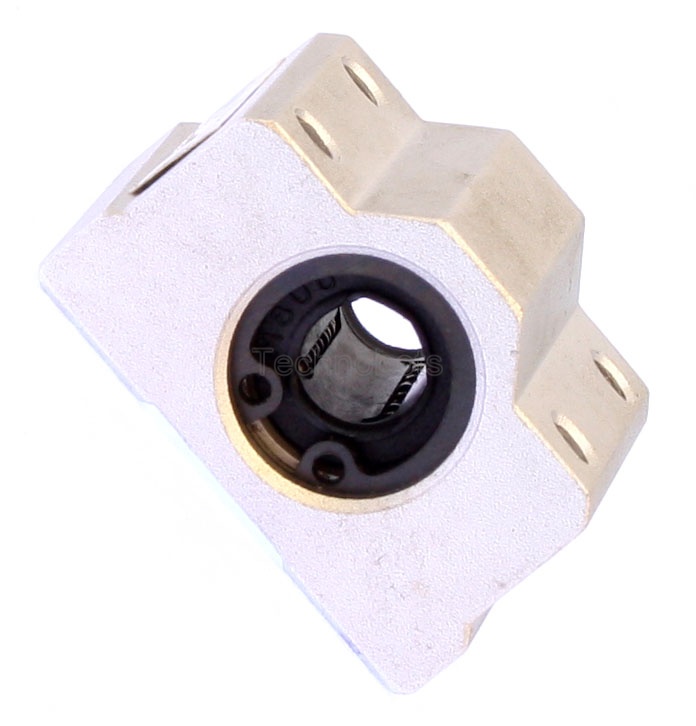

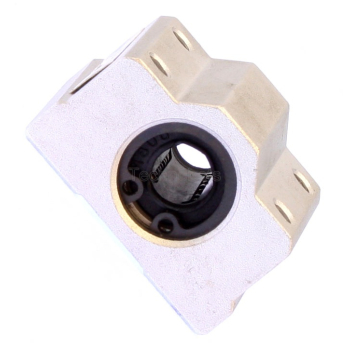

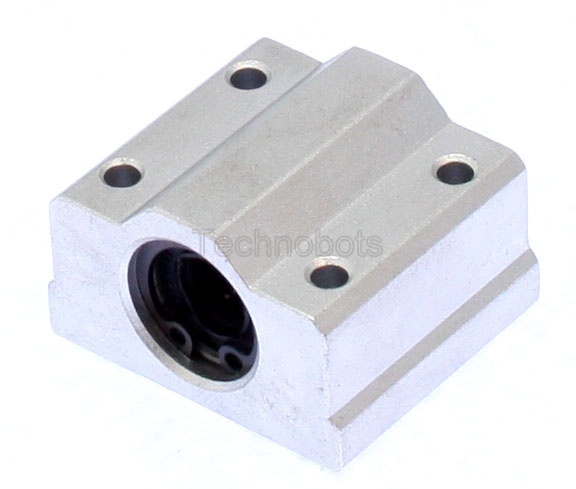

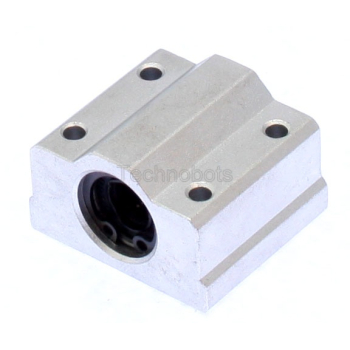

A 8mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables.

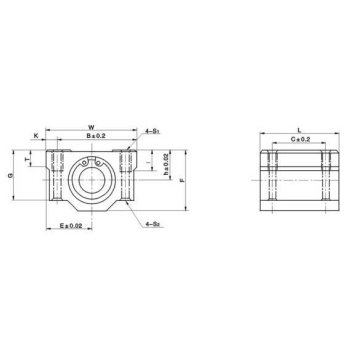

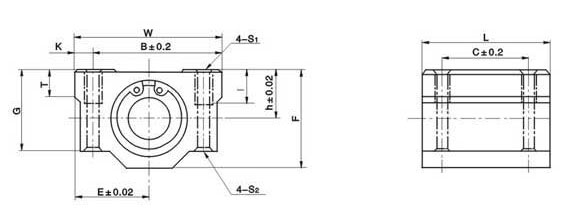

See above dimensions drawing:
- Shaft Diameter: 8mm
- h: 11mm
- E: 17mm
- W: 34mm
- L: 30mm
- F: 22mm
- G: 18mm
- T: 6mm
- B: 24mm
- C: 18mm
- K: 5mm
- S1: M4
- S2: 3.4mm
- I: 8mm
