Makertronics Pillar Shaft Support Mount for Linear Guide Rails,12mm,SK12UU

£1.22
(£1.46 UK, incl VAT)
4604-212
30 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

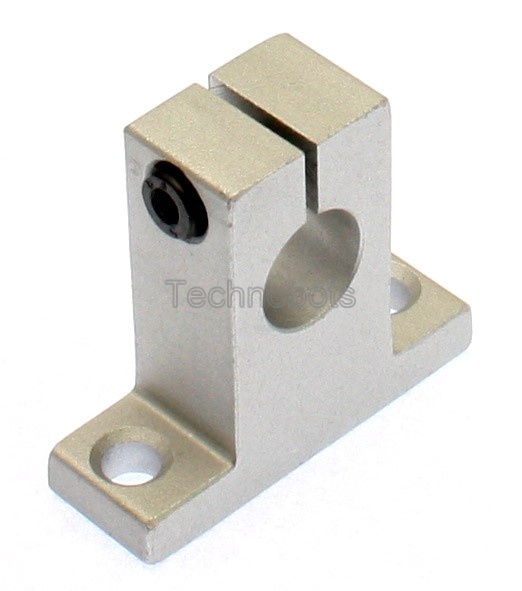

A pillow style aluminium mount for round guide rails of 12mm diameter as typically used for CNC linear bearings.

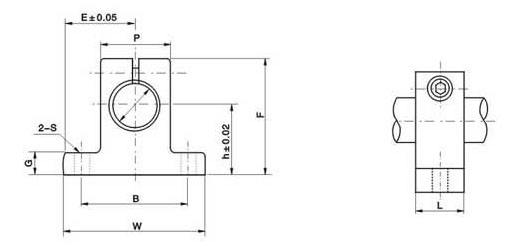

See image for the dimensions drawing:

  • Shaft Diameter: 12mm
  • h: 23mm
  • E: 21mm
  • W: 42mm
  • L: 14mm
  • F: 37.5mm
  • G: 6mm
  • P: 20mm
  • B: 32mm
  • S: 5.5mm
  • Clamp Bolt: M4
  • Mounting Bolt (not included): M5
