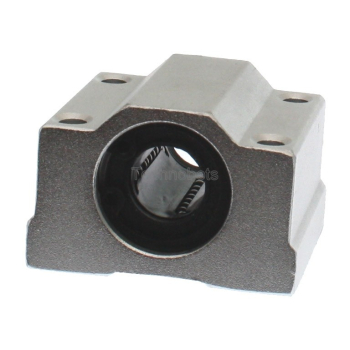

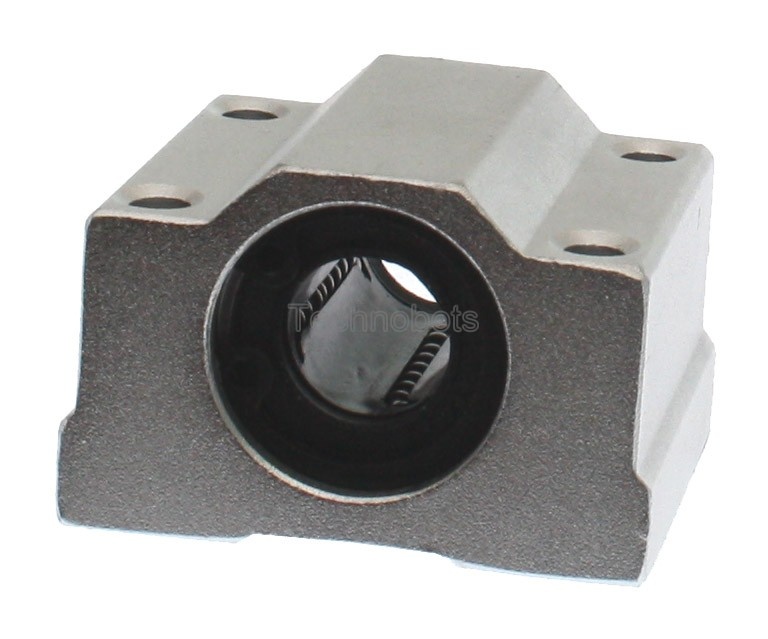

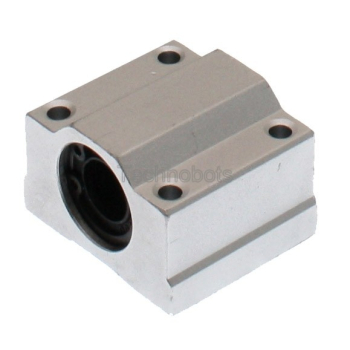

A 12mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables.

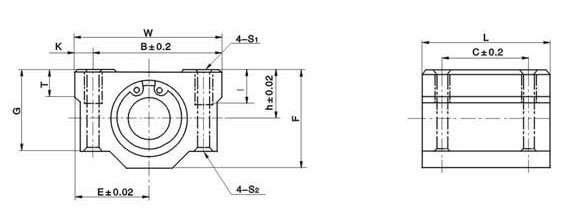

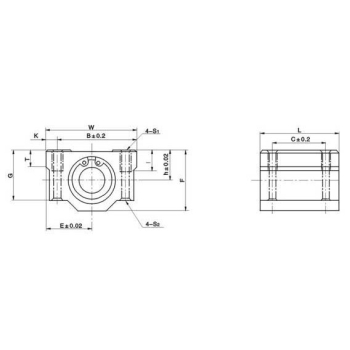

See above dimensions drawing:
- Shaft Diameter: 12mm
- h: 15mm
- E: 21mm
- W: 42mm
- L: 36mm
- F: 28mm
- G: 24mm
- T: 8mm
- B: 30.5mm
- C: 26mm
- K: 5.75mm
- S1: M5
- S2: 4.3mm
- I: 12mm
