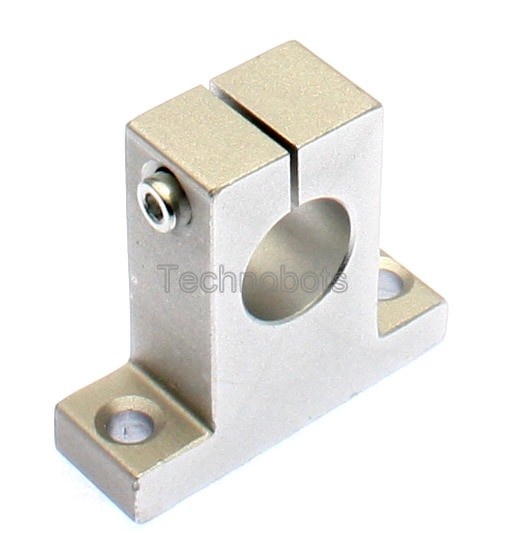

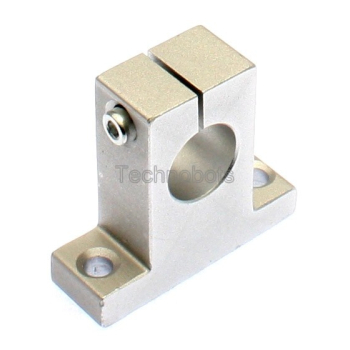

A pillow style aluminium mount for round guide rails of 16mm diameter as typically used for CNC linear bearings.

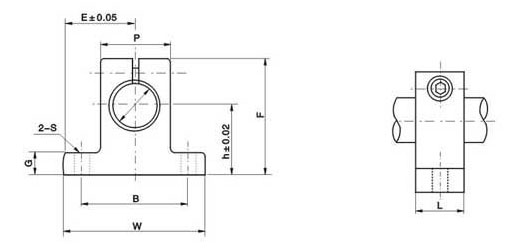

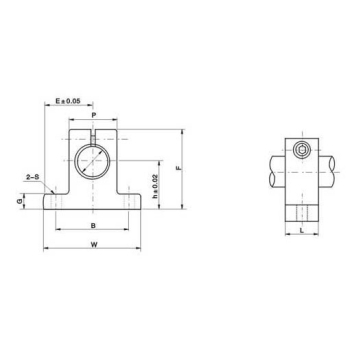

See image for the dimensions drawing:
- Shaft Diameter: 16mm
- h: 27mm
- E: 24mm
- W: 48mm
- L: 16mm
- F: 44mm
- G: 8mm
- P: 25mm
- B: 38mm
- S: 5.5mm
- Clamp Bolt: M4
- Mounting Bolt (not included): M5
