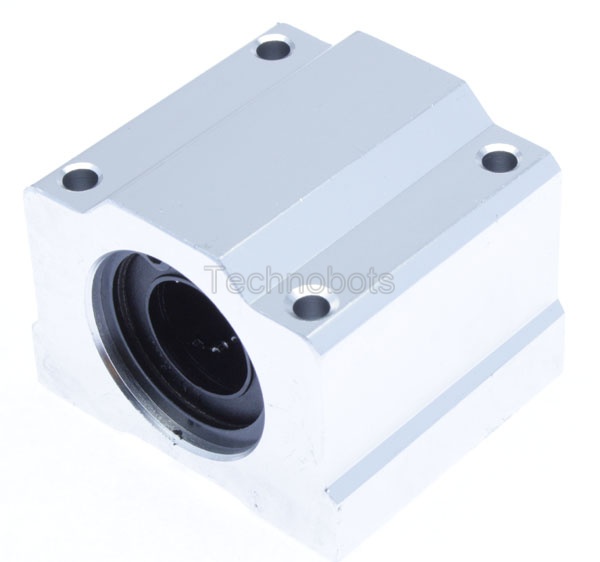

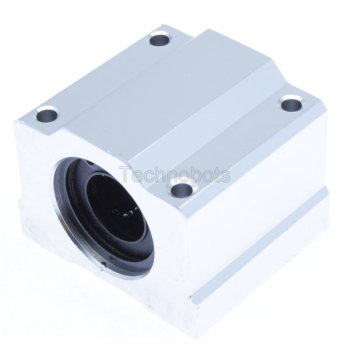

Makertronics Linear Bearing Slide Unit - 16mm SC16UU

List price: £4.89
£3.77
(£4.52 UK, incl VAT) You save: £1.12 (23%)
Price in points: 754 points
4604-416
194 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

A 16mm bore linear slide bearing for use on hardened steel shafts. Ideal for small CNC applications as well as X / Y tables.

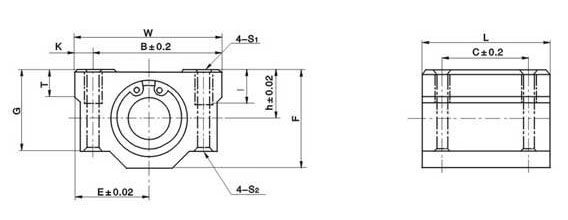

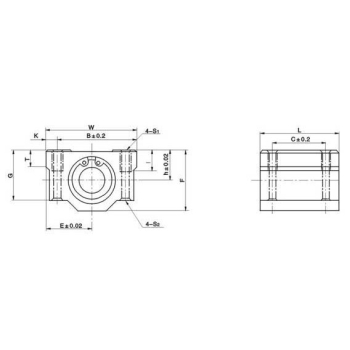

See above dimensions drawing:

  • Shaft Diameter: 16mm
  • h: 19mm
  • E: 25mm
  • W: 50mm
  • L: 44mm
  • F: 38.5mm
  • G: 32.5mm
  • T: 9mm
  • B: 36mm
  • C: 34mm
  • K: 7mm
  • S1: M5
  • S2: 4.3mm
  • I: 16mm
