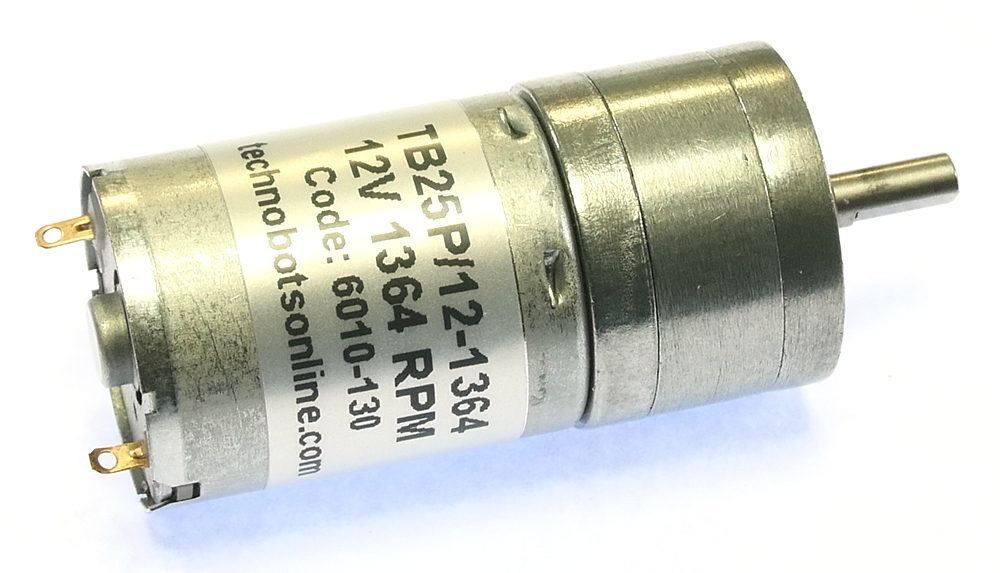

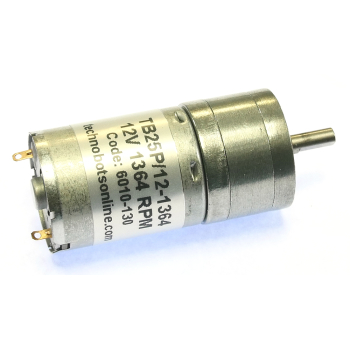

Technobots TB25P/12-1360 12V 1360 RPM Planetary Geared Motor

£9.71
(£11.65 UK, incl VAT)
Price in points: 1943 points
6010-130
100 g
In Stock
+ −
Add to wish list

Technobots 25mm diameter planetary drive geared motor available in 6V or 12V versions with rpm speeds from 12 to 1360 rpm. As with any geared motor, stalling can damage the gearbox especially those with a high reduction ratio.

Model TB25P/12-1360
Voltage 12V
Ratio 4.4:1
Gearbox Length L 19mm
No Load
RPM 1360
Approx Current 0.06A
Rated Load
RPM 1000
Approx Current 0.3A
Torque kg.cm 0.1kg.cm
Stall
Approx Current 1.3A
Torque kg.cm 0.4kg.cm

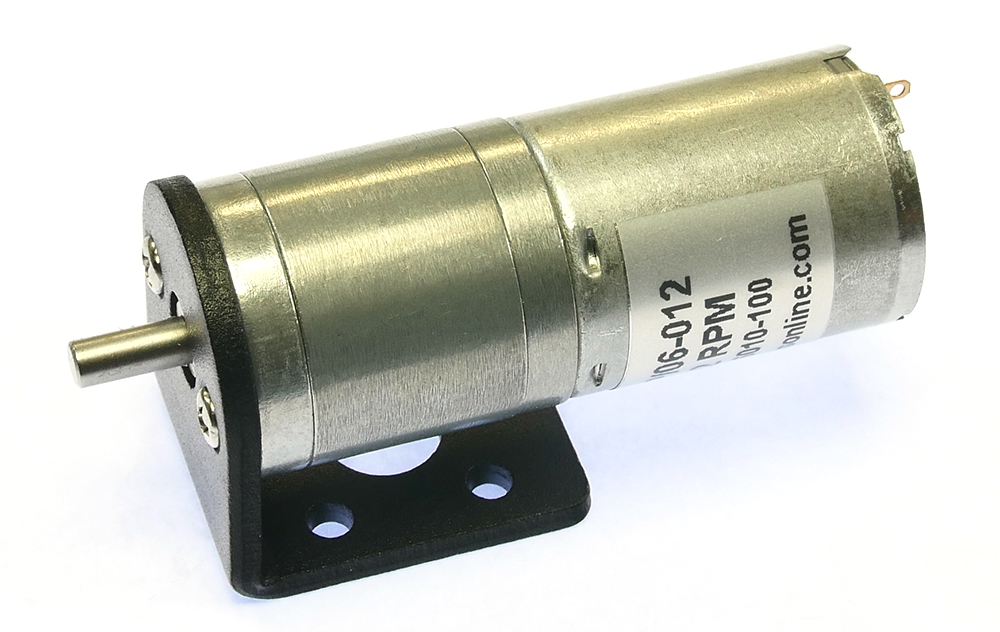

 Also available is this optional bracket 6010-131 for surface mounting the motor
