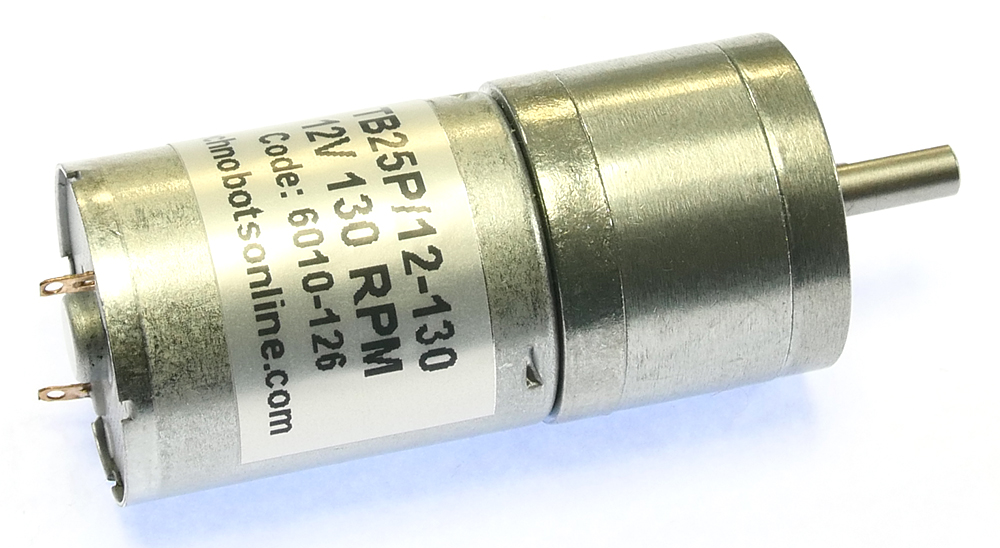

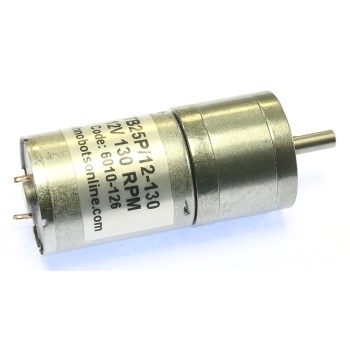

Technobots 25mm diameter planetary drive geared motor available in 6V or 12V versions with rpm speeds from 12 to 1360 rpm. As with any geared motor, stalling can damage the gearbox especially those with a high reduction ratio.
| Model | TB25P/12-130 |
| Voltage | 12V |
| Ratio | 45:1 |
| Gearbox Length L | 21mm |
| No Load | |
| RPM | 130 |
| Approx Current | 0.06A |
| Rated Load | |
| RPM | 100 |
| Approx Current | 0.3A |
| Torque kg.cm | 1kg.cm |
| Stall | |
| Approx Current | 1.3A |
| Torque kg.cm | 3.6kg.cm |
Also available is this optional bracket 6010-131 for surface mounting the motor
