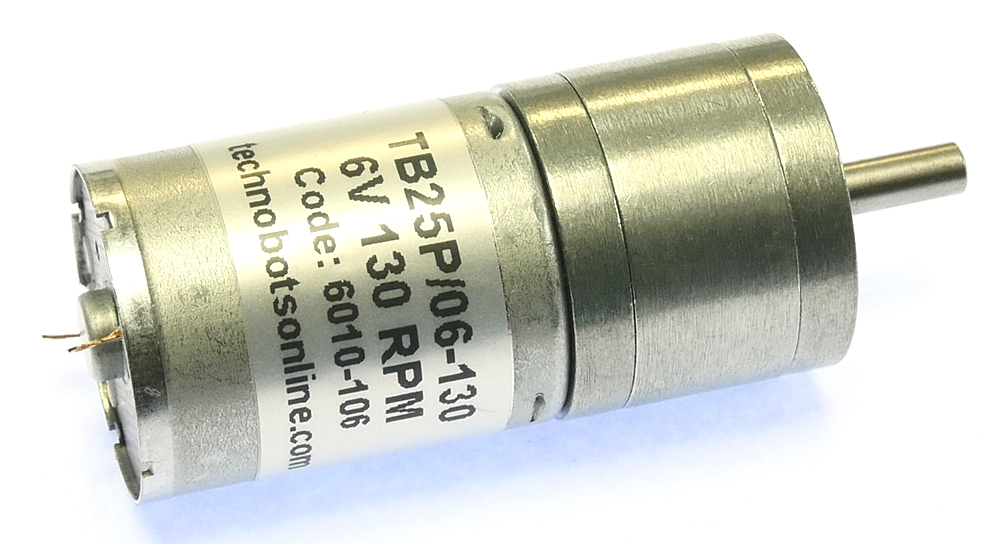

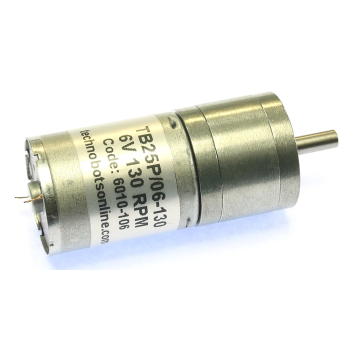

Technobots TB25P/06-130 6V 130 RPM Planetary Geared Motor

£9.71
(£11.65 UK, incl VAT)
Price in points: 1943 points
6010-106
100 g
In Stock
+ −
Add to wish list

Technobots 25mm diameter planetary drive geared motor available in 6V or 12V versions with rpm speeds from 12 to 1360 rpm. As with any geared motor, stalling can damage the gearbox especially those with a high reduction ratio.

Model TB25P/06-130
Voltage 6V
Ratio 45:1
Gearbox Length L 21mm
No Load
RPM 130
Approx Current 0.1A
Rated Load
RPM 100
Approx Current 0.45A
Torque kg.cm 1kg.cm
Stall
Approx Current 2A
Torque kg.cm 3.6kg.cm



 Also available is this optional bracket 6010-131 for surface mounting the motor
