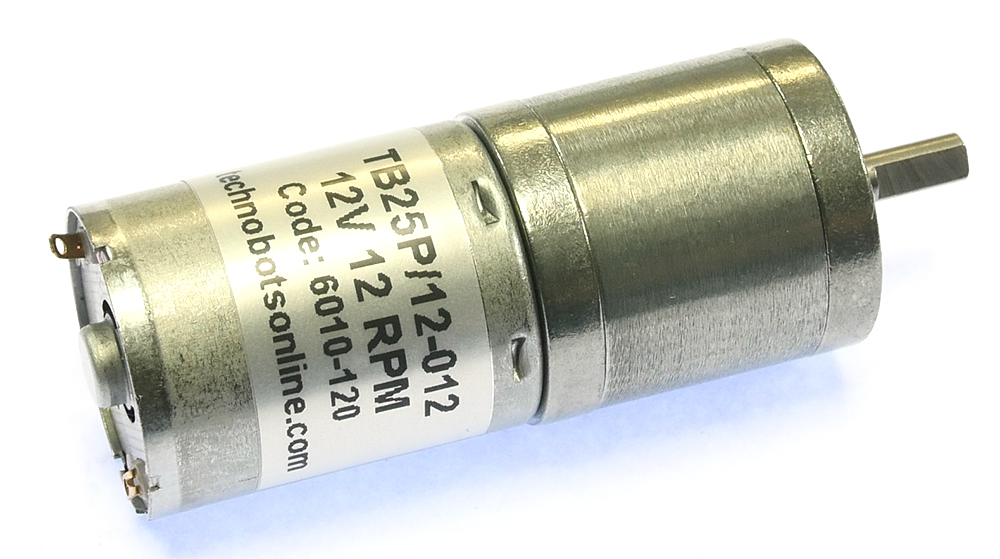

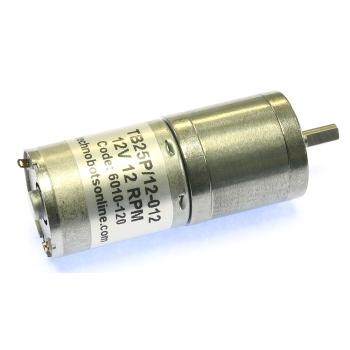

Technobots TB25P/12-12 12V 12 RPM Planetary Geared Motor

£9.71
(£11.65 UK, incl VAT)
Price in points: 1943 points
6010-120
100 g
In Stock
+ −
Add to wish list

Technobots 25mm diameter planetary drive geared motor available in 6V or 12V versions with rpm speeds from 12 to 1360 rpm. As with any geared motor, stalling can damage the gearbox especially those with a high reduction ratio.

Model TB25P/12-012
Voltage 12V
Ratio 500:1
Gearbox Length L 27mm
No Load
RPM 12
Approx Current 0.06A
Rated Load
RPM 9
Approx Current 0.3A
Torque kg.cm 9kg.cm
Stall
Approx Current 1.3A
Torque kg.cm 27kg.cm



 Also available is this optional bracket 6010-131 for surface mounting the motor
