Stepper Motor NEMA 14, 35x28mm 10V 500mA

£23.69
(£28.43 UK, incl VAT)
Price in points: 4738 points
1402-038
125 g
2 item(s)
End of line
+
Add to wish list

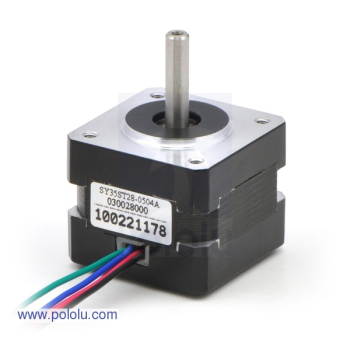

This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 500 mA at 10 V, allowing for a holding torque of 1000 g-cm (14 oz-in). The motor has four color-coded wires terminated with bare leads. Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.

Specifications

  • Size: 35 mm square x 28 mm, not including the shaft (NEMA 14)
  • Weight: 140 g (5 oz)
  • Shaft diameter: 5 mm
  • Steps per revolution: 200
  • Current rating: 500 mA per coil
  • Voltage rating: 10 V
  • Resistance: 20 Ohm per coil
  • Holding torque: 1000 g-cm (14 oz-in)
  • Inductance: 13.5 mH per coil
  • Lead length: 12 in

Dimensions

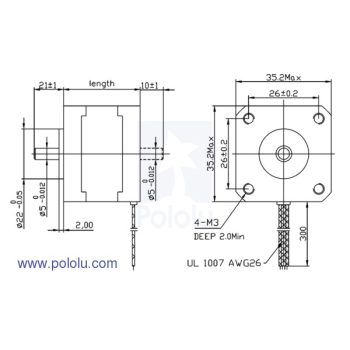

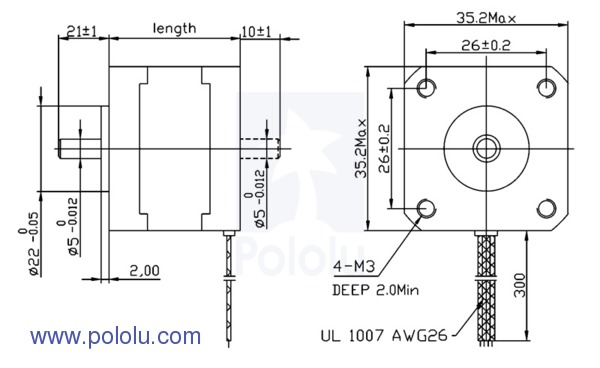

The dimensions diagram above shows the stepper motor dimensions in mm. The dimension labeled “length” is 28 mm. The output shaft has a length of 21 mm and a diameter of 5 mm.

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives

Manufacturer's Details

Manufacturer's SKU :
1208
Manufacturer:
Pololu

No posts found

Write a review

Hi I am thinking of this & the Nema 17 stepper motors I am also thinking of using the spark fun drivers in conjunction With an arduino. To my questions: 1 Am I correct in thinking I would be able to do micro stepping 2 should I use the easy driver 2900-417 for the Nema 14 and the big easy driver 2900-445 for the Nema 17 In both cases my load will be small. Thanks in advance Russell

Asked by Russell | 01/06/2014, 12:36 | 1 answer(s)

What RPM does the motor run at ? Can I use this motor to turn backwards and forwards through 90 degrees? What's the best drive / controller to use ? Thanks, Simon.

Asked by Simon Heelas | 22/02/2013, 15:52 | 1 answer(s)
