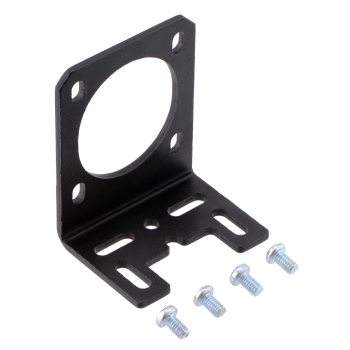

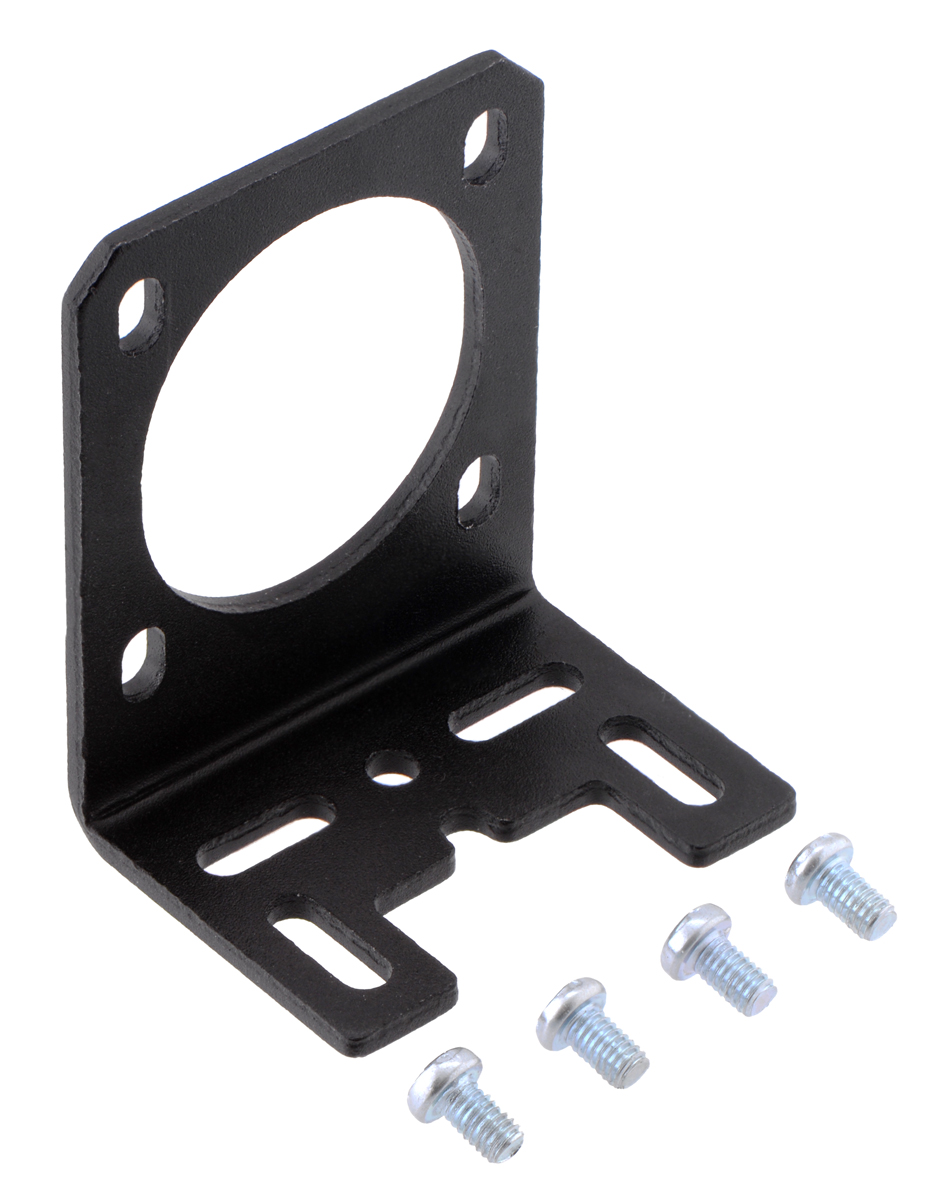

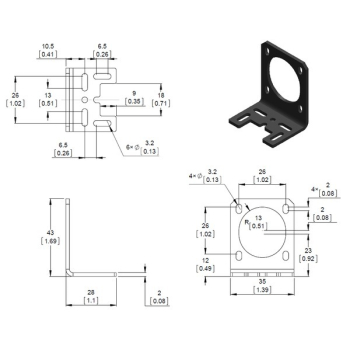

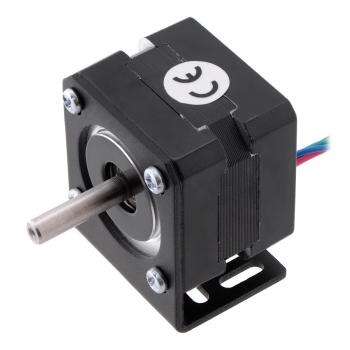

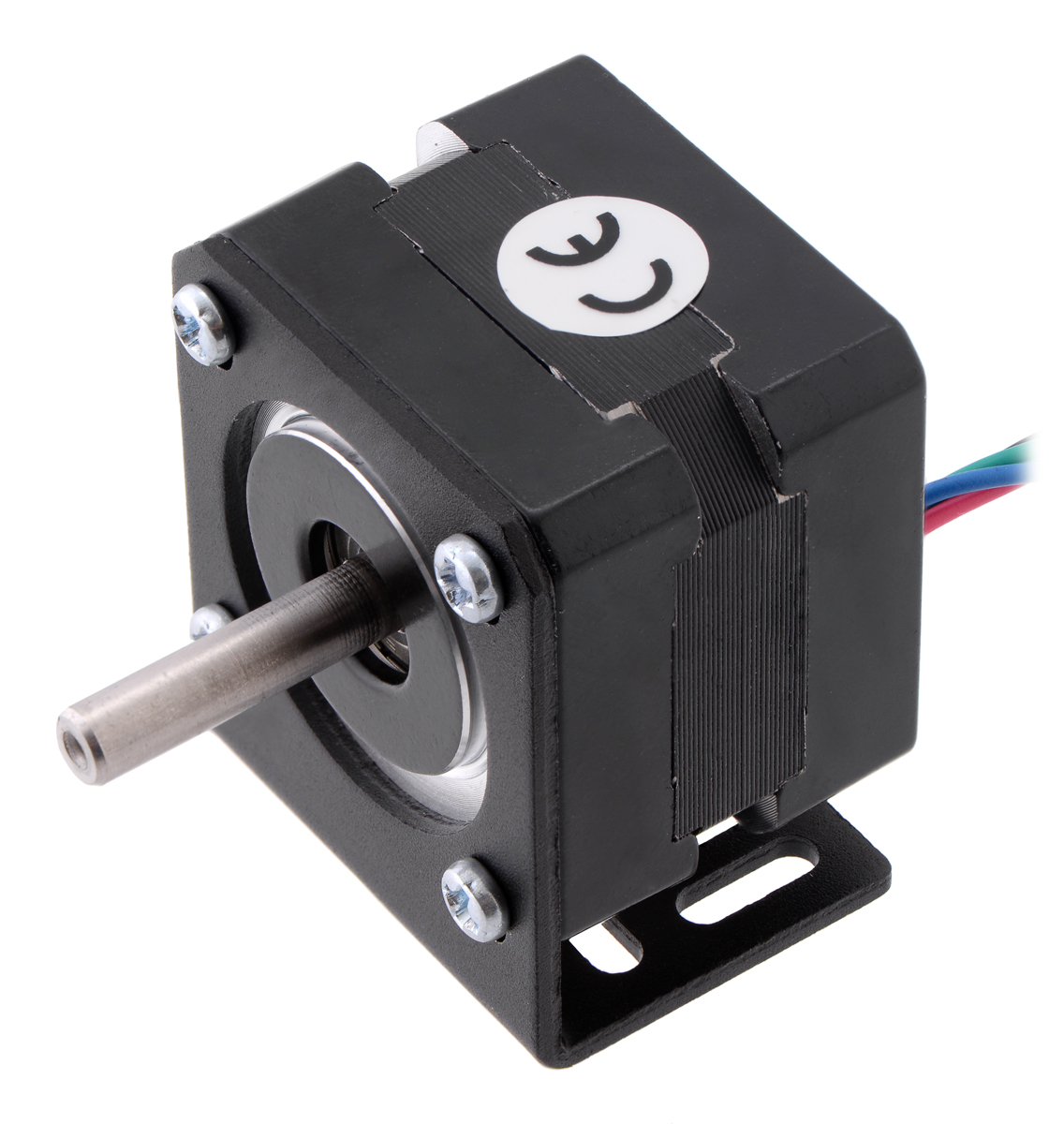

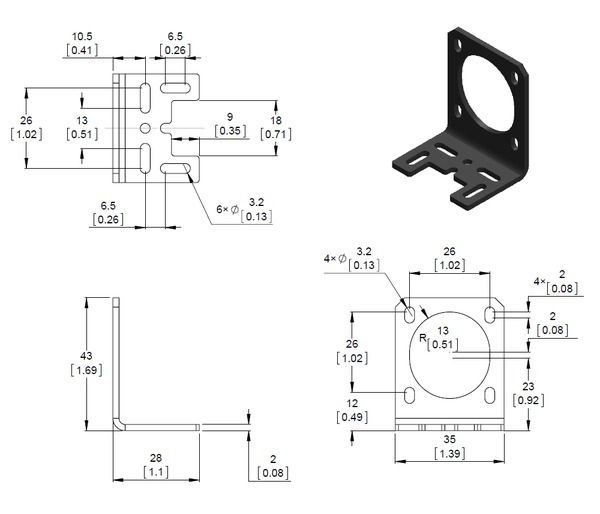

This lightweight (about 7.5 g) but strong bracket is made from 2mm-thick black anodized aluminum and is specifically designed to work with the typical faceplate mounting holes of NEMA 14 stepper motors. The slots through which the motor mounts to the bracket allow for 2 mm of play for fine-tuning position, and four 5 mm M3 screws are included for securing the motor to the bracket. The other side of the bracket includes a variety of slots and holes that can be used with and M3.
