Stepper Motor NEMA 11, 28x32mm 3.8V 670mA

£31.18
(£37.42 UK, incl VAT)
Price in points: 6236 points
1402-035
112 g
1 item(s)
End of line
+
Add to wish list

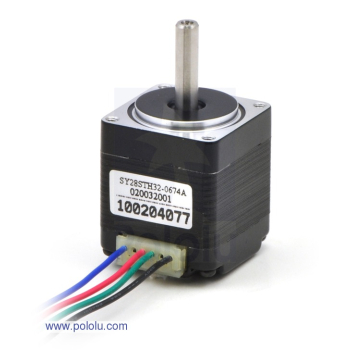

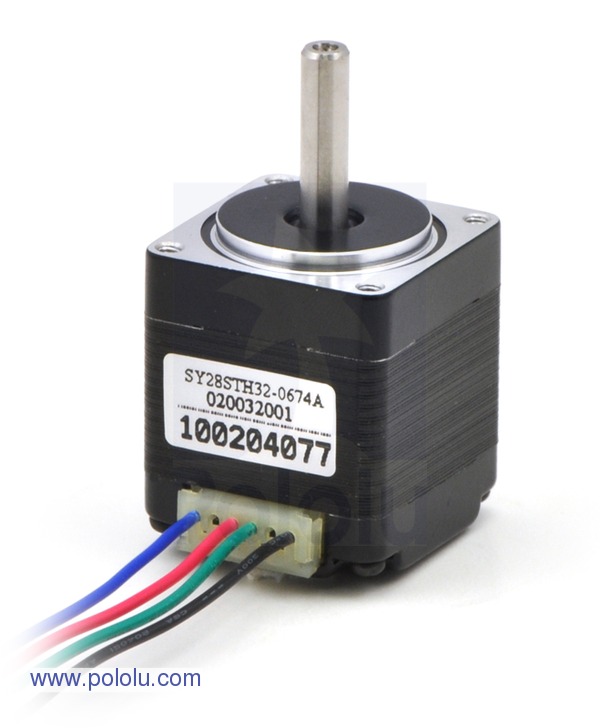

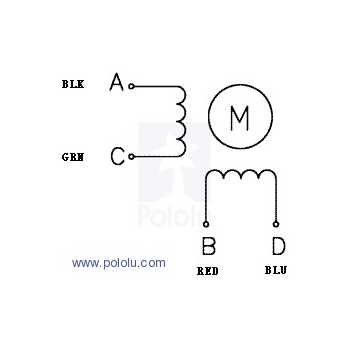

This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 3.5 V, allowing for a holding torque of 600 g-cm (8.3 oz-in). The motor has four color-coded wires terminated with bare leads. Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.

Specifications

  • Size: 28 mm square x 32 mm, not including the shaft (NEMA 11)
  • Weight: 110 g (4 oz)
  • Shaft diameter: 5 mm
  • Steps per revolution: 200
  • Current rating: 670 mA per coil
  • Voltage rating: 3.8 V
  • Resistance: 5.6 Ohm per coil
  • Holding torque: 600 g-cm (8.3 oz-in)
  • Inductance: 4.2 mH per coil
  • Lead length: 12 in

Dimensions

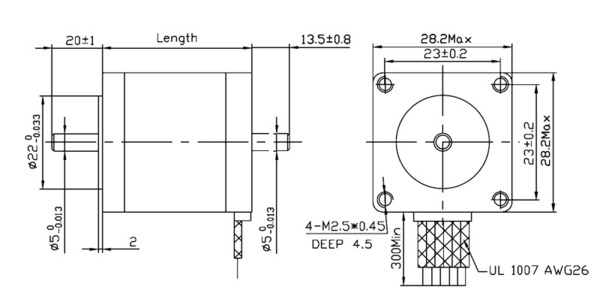

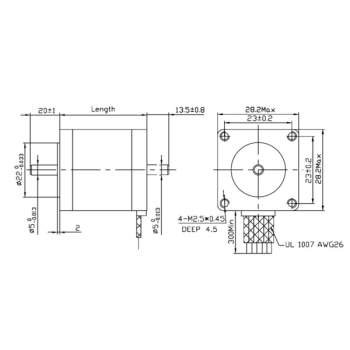

The dimensions diagram above shows the stepper motor dimensions in mm. The dimension labeled “Length” is 32 mm. The output shaft has a length of 20 mm and a diameter of 5 mm.

Stepper Motor Applications

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives

Manufacturer's Details

Manufacturer's SKU :
1205
Manufacturer:
Pololu

No posts found

Write a review

I am unsure about how much voltage is required to operate stepper motors. The Stepper Motor (NEMA 11, 28x32mm 3.8V 670mA) requires 3.8V, correct? So I should use a variable voltage regulator to reduce the voltage to 3.8V? Can my source voltage be 12V?, or does it have to be 24V?

Asked by Chris Millar | 01/11/2016, 18:45 | 2 answer(s)
