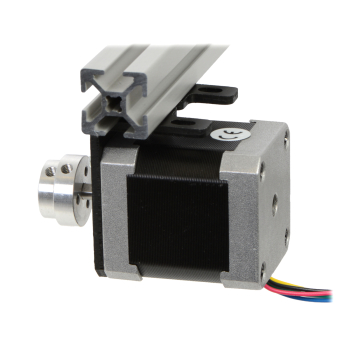

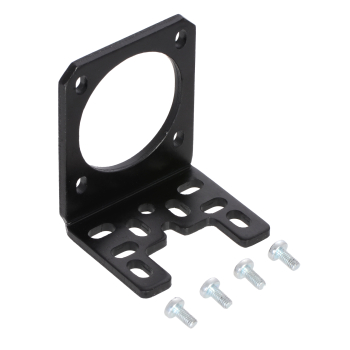

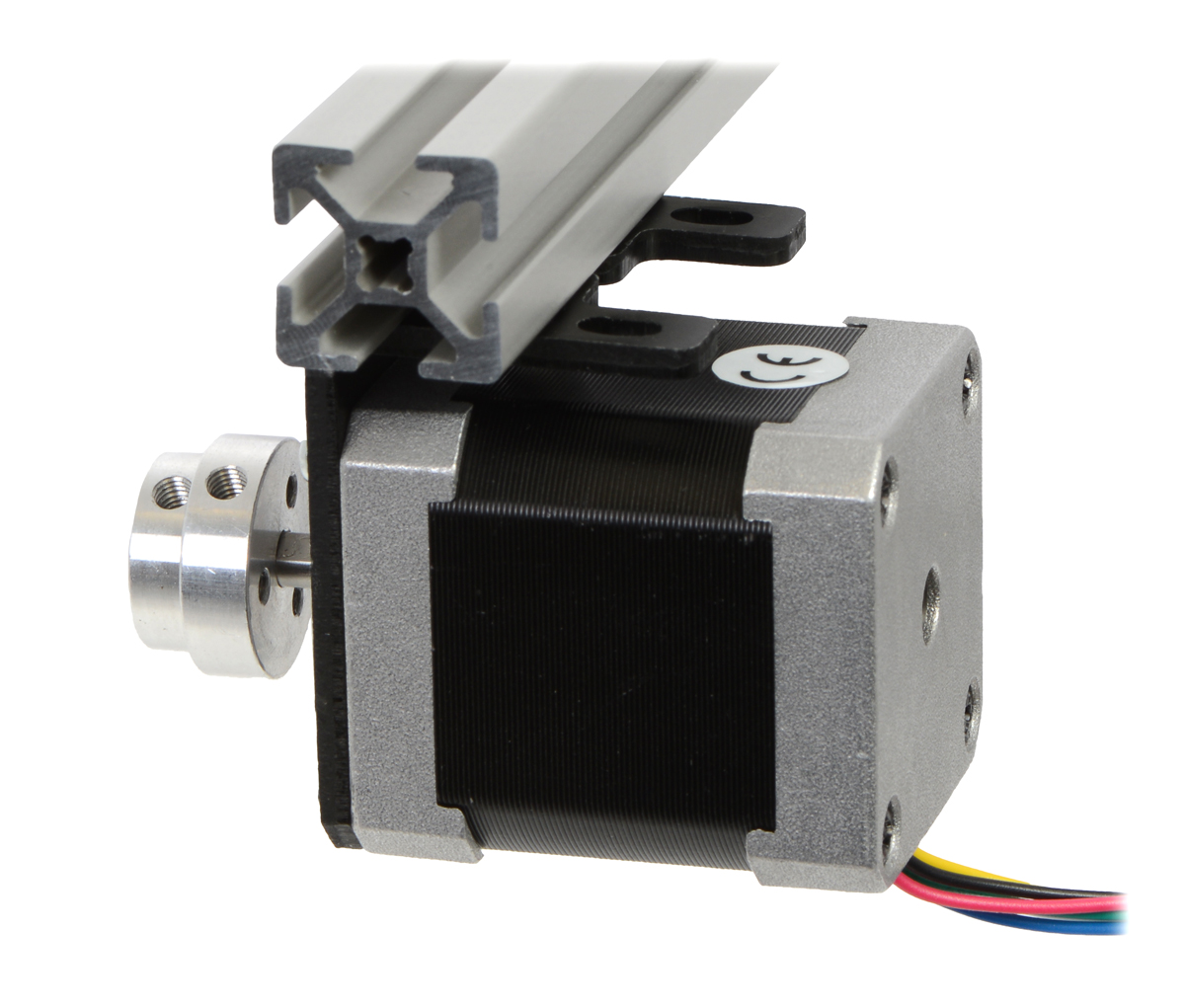

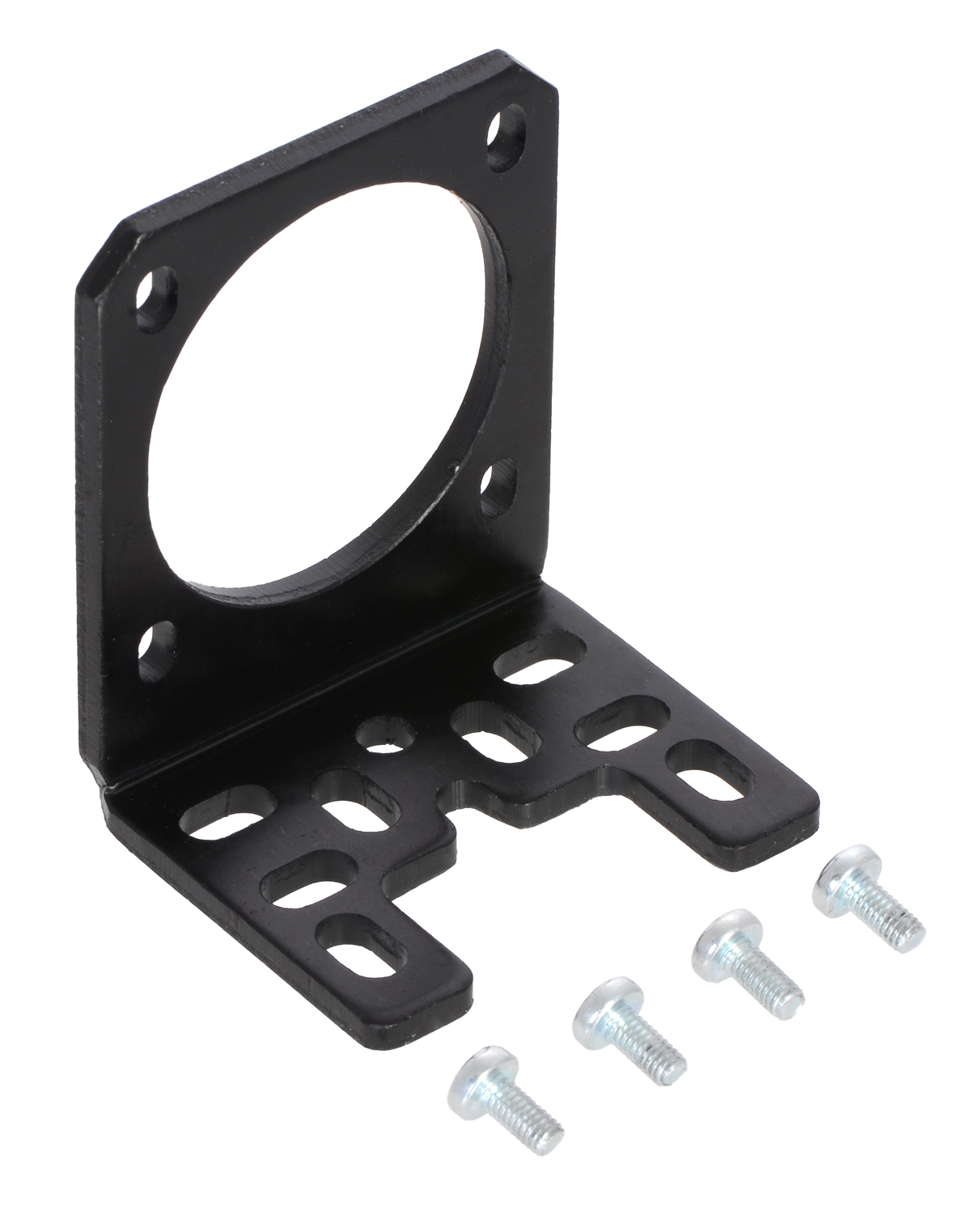

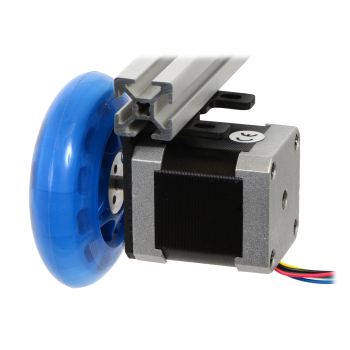

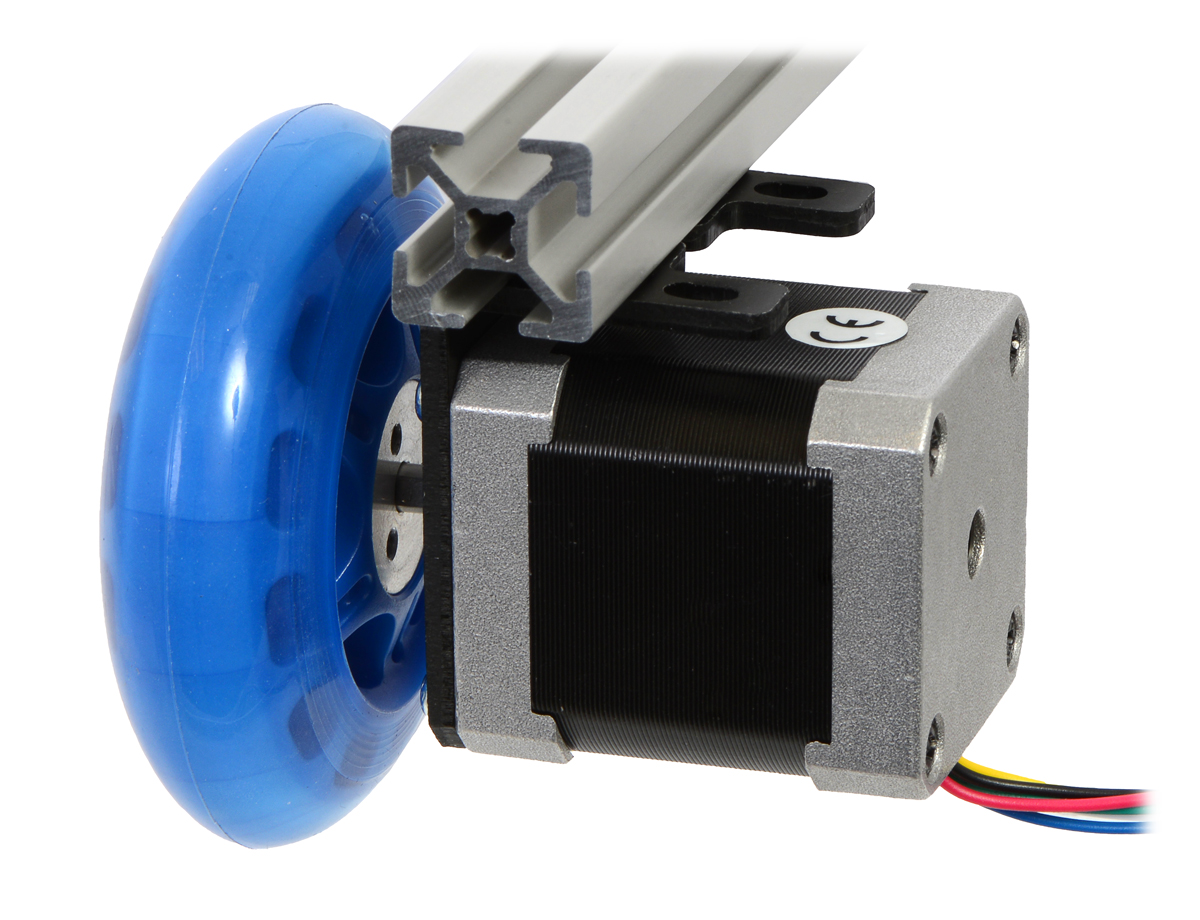

This black anodized aluminum bracket lets you securely mount typical NEMA 17-size stepper motors to your project including ours. The bracket features several slots and holes for a wide variety of mounting solutions, and four M3×6mm screws are included for securing the motor to the bracket.

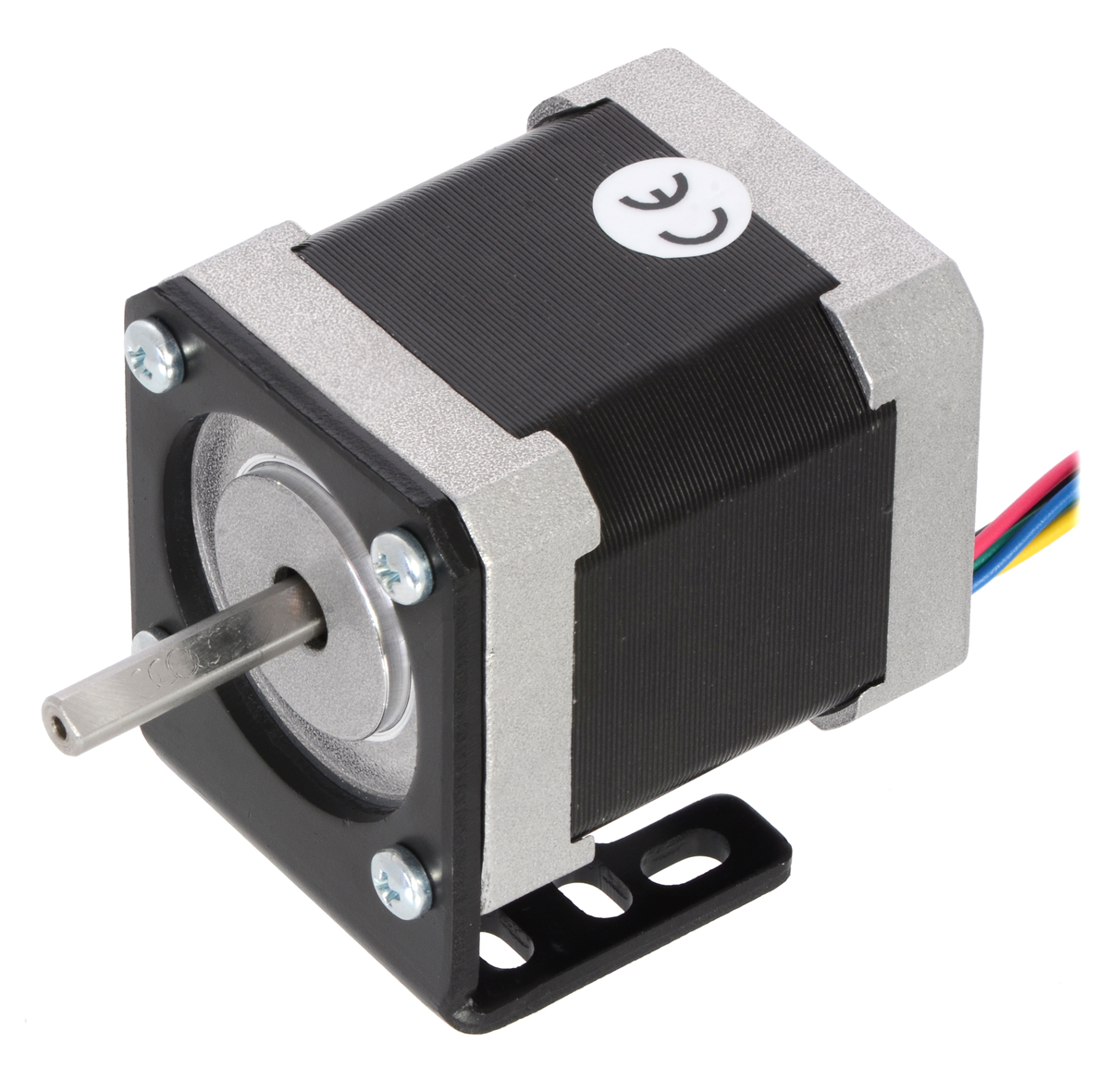

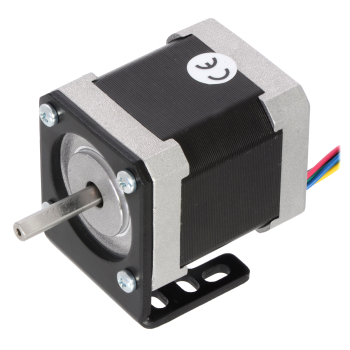

This lightweight (about 15 g) but strong bracket is made from 3mm-thick black anodized aluminum and is specifically designed to work with the typical faceplate mounting holes of NEMA 17 stepper motors. The slots through which the motor mounts to the bracket allow for 2mm of play for fine-tuning position, and four 6mm M3 screws are included for securing the motor to the bracket (note: these M3 screws work with most NEMA 17 stepper motors). The other side of the bracket includes a variety of slots and holes that can be used with #6, #8 and M4 screws.
