Stepper Motor 17HS4401S, NEMA 17, 1.68A, 4.4mH, 1.95R, 45 N.cm

£12.78
(£15.34 UK, incl VAT)
Price in points: 2556 points
6013-306
300 g
In Stock
+ −
Add to wish list

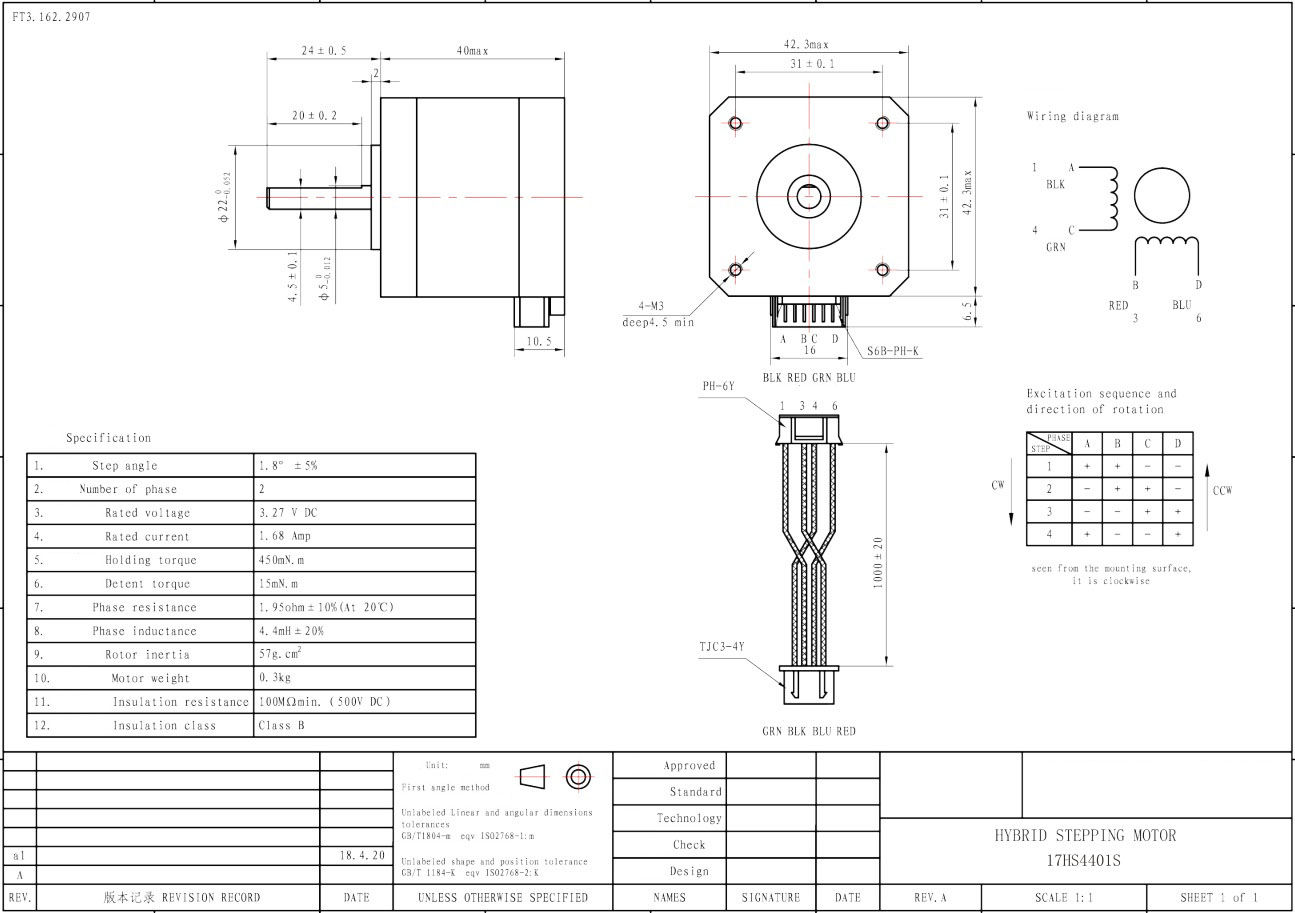

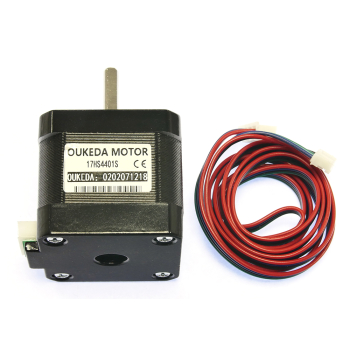

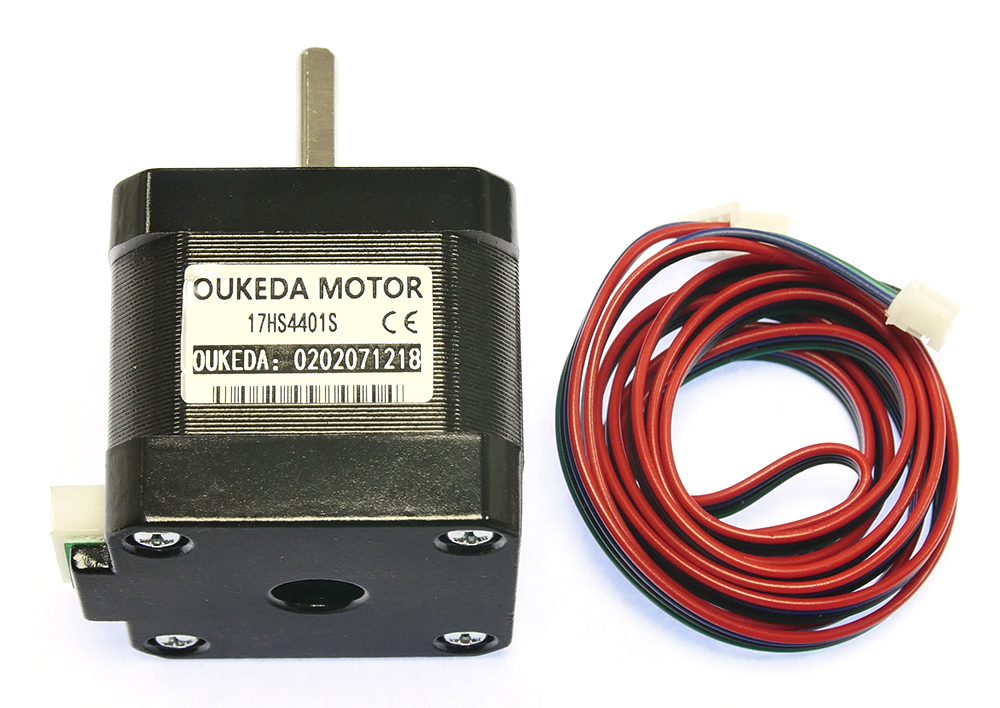

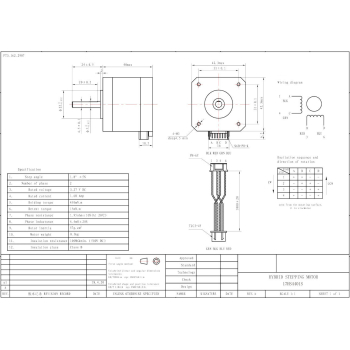

Stepper motor. Nema 17 model 17HS4401S

  • Step angle: 1.8 Degrees +/- 5%
  • Phases: 2
  • Rated Current: 1.7A
  • Holding Torque: 45 N.cm
  • Detent Torque: 1.5 N.cm
  • Phase Resistance: 1.95R
  • Phase Inductance: 4.4mH
  • Rotor Inertia: 57g.cm²
  • Motor Weight: 300g
  • Body length L: 40mm
