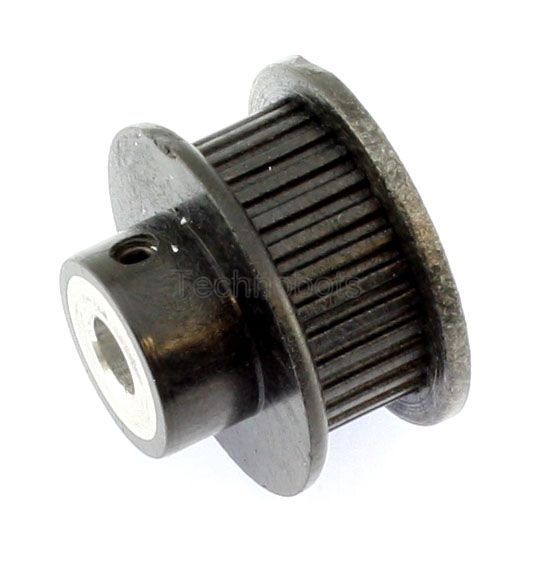

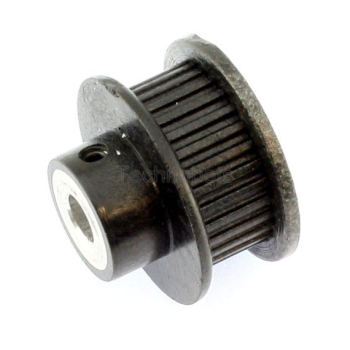

MXL025 Plastic Timing Pulley 28 Teeth Alu Ins

£9.85
(£11.82 UK, incl VAT)
Price in points: 1970 points
4630-028
8 g
In Stock
+ −
Add to wish list
Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

MXL025 Plastic Timing Pulley 28 Teeth Alu Ins

Part No. 4630-028
Code PP28MXL025MI
Insert Aluminium
Type B
No. Teeth 28
Dp 18.11
De 17.6
Df 22
Dm 13
Fw 8
L 17.5
Bore (d) 5
Pw 11
GrubScrew Gs 1 x M3
K 3
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
