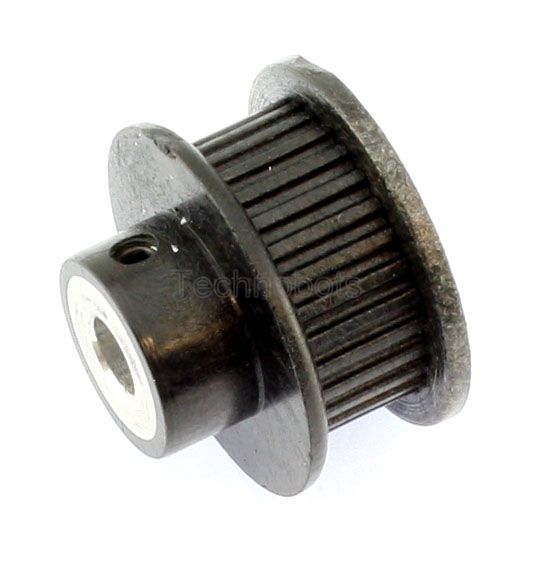

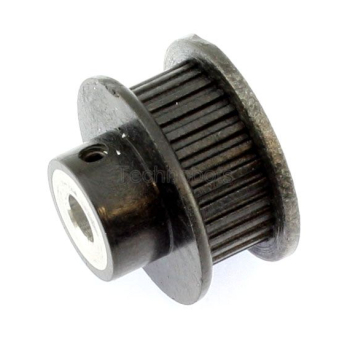

MXL025 Plastic Timing Pulley 36 Teeth Alu Ins

£10.10
(£12.12 UK, incl VAT)
Price in points: 2020 points
4630-036
9 g
In Stock
+ −
Add to wish list
Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

MXL025 Plastic Timing Pulley 36 Teeth Alu Ins

Part No. 4630-036
Code PP36MXL025MI
Insert Aluminium
Type B
No. Teeth 36
Dp 23.29
De 22.78
Df 28
Dm 13
Fw 8
L 17.5
Bore (d) 5
Pw 11
GrubScrew Gs 1 x M3
K 3
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
