Plastic Timing Pulleys MXL025 (0.080" / 2.032mm pitch). Moulded with metric insert with grub screw. Polycarbonate - Glass Filled.

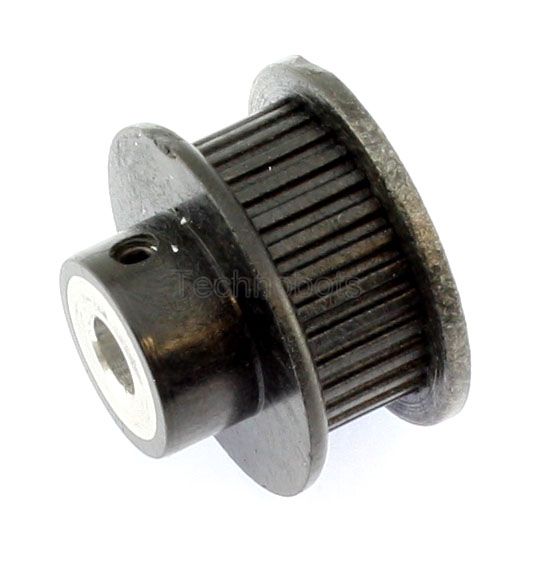

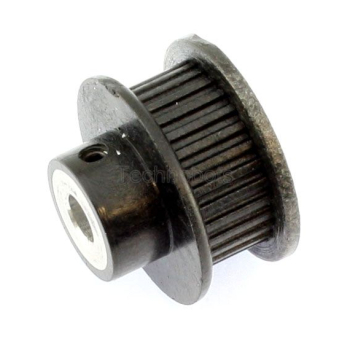

MXL025 Plastic Timing Pulley 24 Teeth Alu Ins
MXL025 Plastic Timing Pulley 24 Teeth Alu Ins
Part No. | 4630-024 |
Code | PP24MXL025MI |
Insert | Aluminium |
Type | B |
No. Teeth | 24 |
Dp | 15.52 |
De | 15.01 |
Df | 20 |
Dm | 13 |
Fw | 8 |
L | 17.5 |
Bore (d) | 5 |
Pw | 11 |
GrubScrew Gs | 1 x M3 |
K | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
