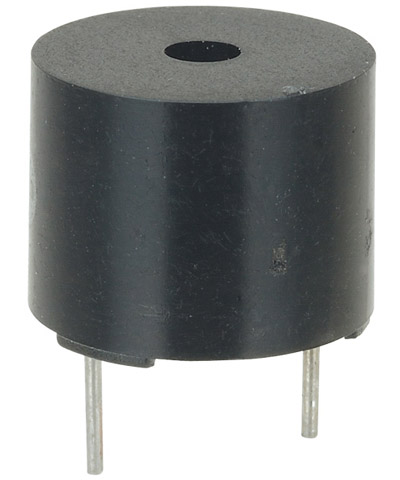

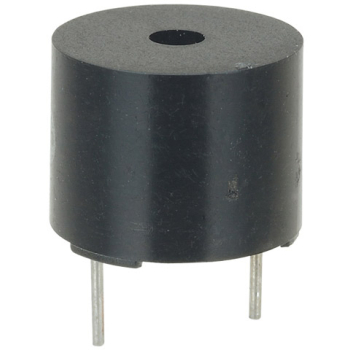

Buzzer 12V 85dB at 10cm 2.3kHz

£1.64
(£1.97 UK, incl VAT)
Price in points: 328 points
2400-118
2 g
In Stock
+
Add to wish list

Electro Mechanical Sounder, Continuous Tone, 12mm Diameter, Built-in oscillating circuit, Sealed structure, Wave solderable and washable, Noryl Housing.

Rated voltage12V DC
Operating voltage8 - 16V DC
Rated current at rated voltage30mA
Sound output at rated voltage at 10cm
>85dB
Resonant frequency at rated voltage2300 ±500Hz
Operating temperature–20°C to +70°C
Storage temperature–30°C to +80°C
Housing materialNoryl
Weight2g

Downloads

Datasheet (2400-118.pdf, 292 Kb) [Download]
