Model Motor Size F

£3.78
(£4.54 UK, incl VAT)
Price in points: 756 points
1400-025
152 g
In stock
+
Add to wish list

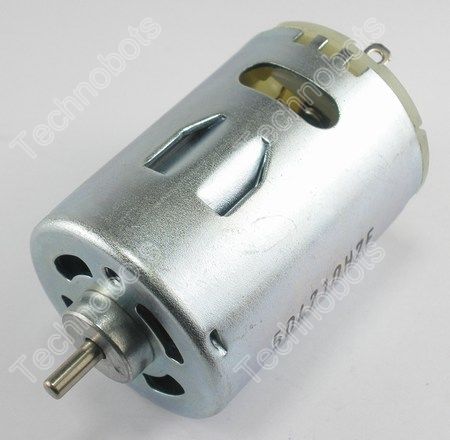

A 3-pole dc motor.



Specifications
Voltage Range:6V to 12V
Rated Voltage:7V
Rated Power:47W
No Load Current:1.59A
Rated Load Current:4.7A @ max eff.
Rated Load Speed:7,790 RPM +/- 10%
Torque:261 g/cm
Stall Torque:1850g/cm @ 58.5A
Body Diameter:35.8mm
Body Length:50mm
Spindle Length:9mm
Spindle Diameter:3.175mm

Downloads

No posts found

Write a review

Can anyone tell me how I can mount items to this motor...I would like to attach a plastic disk to it. Are there any 'collar' type screws I can screw onto this motor. Thanks

Asked by Julian | 29/07/2013, 20:17 | 1 answer(s)
