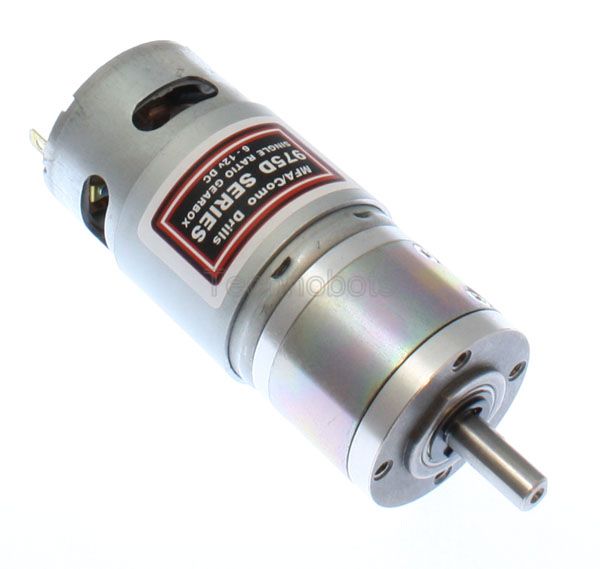

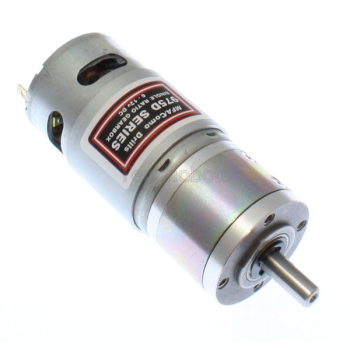

975D41 41W Planetary Geared Motor 4:1

List price: £29.95
£10.07
(£12.08 UK, incl VAT) You save: £19.88 (66%)
Price in points: 2014 points
1450-320
600 g
2 item(s)
End of Line
+ −
Add to wish list

MFA Como Drills RE975D41

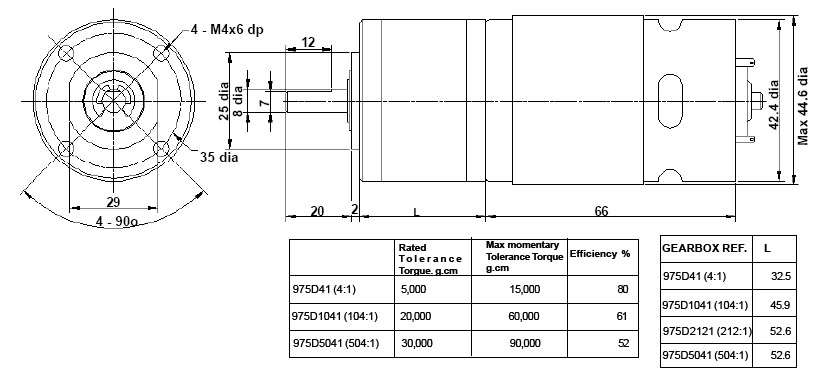

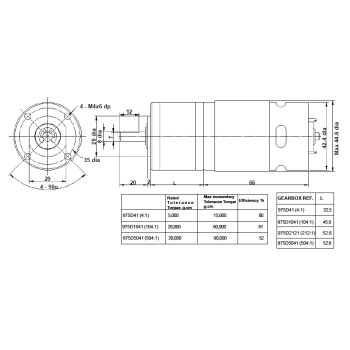

Specification
Output rpm no load at 12V 1750
Output rpm at max efficiency at 12V 1425
Voltage range 6-12V
No load current 0.9A
Efficiency 63%
Current at max efficiency 5.5A
Output continuous torque 0.49Nm
Maximum momentary 1.47Nm
Diameter 45mm
Overall length 110mm

Note: Output shaft 8mm diameter, 18mm long, 12mm flat 1mm deep.
