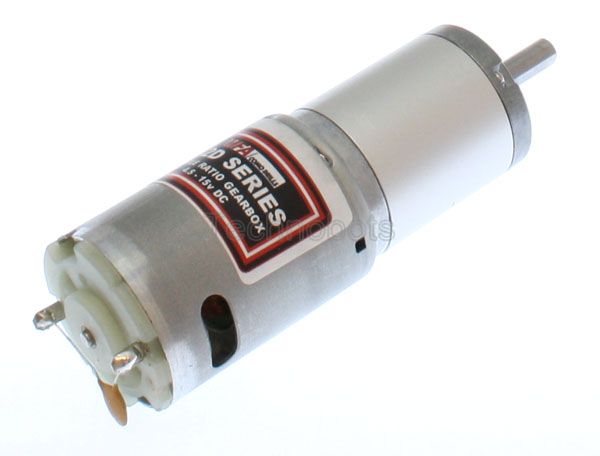

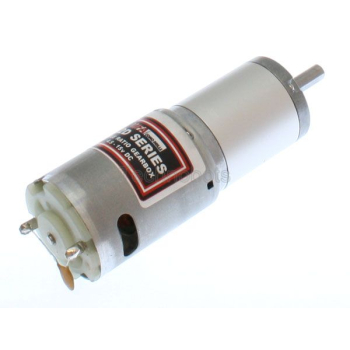

942D5161 540/1 Planetary Geared Motor 516:1

Write a review
£28.55
(£34.26 UK, incl VAT)
Price in points: 5710 points
1450-082
300 g
In Stock
+ −
Add to wish list

MFA Como Drills 942D5161

Output rpm at:

4.5V = 9.5
6V = 13
9V = 20
12V = 27
15V = 32
Output theoretical torque (g/cm) at 12V, max efficiency = 79670, stall torque 516000



1450-080 to 85 Motor Performance
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
6.0 0.45 0 7500   No Load
6.0 2.1 118.2 6180 59.4 max 7.49
6.0   670 Stall 0   0
12.0 0.52 0 15800   No Load
12.0 2.85 154.4 13360 61.9 max 21.2
12.0   1000 Stall 0   0

No posts found

Write a review

Do you sell mounting brackets for this motor (942D5161 540/1 Planetary Geared Motor 516:1)? If so, could you please point me to them on your website? Many thanks for your help.

Asked by Keith | 23/01/2016, 10:02 | 1 answer(s)

is the motor dual direction ie if i reverse the incoming battery polarity will the motor go in the opposite direction?

Asked by christian fraser | 21/07/2013, 05:05 | 1 answer(s)
