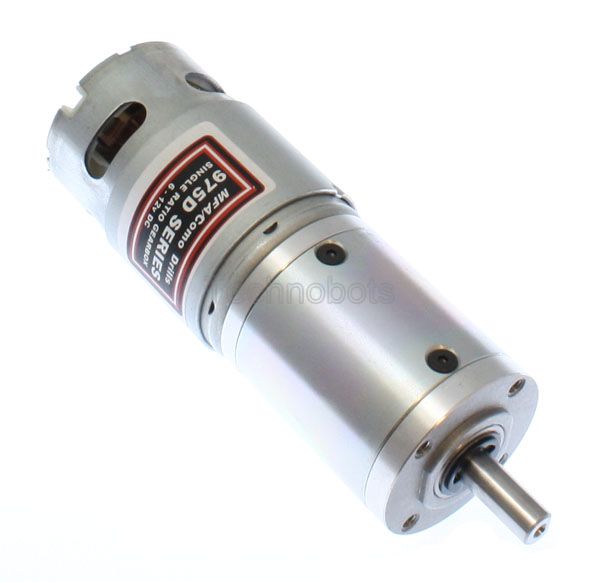

975D5041 41W Planetary Geared Motor 504:1

List price: £35.45
£11.92
(£14.30 UK, incl VAT) You save: £23.53 (66%)
Price in points: 2384 points
1450-322
740 g
1 item(s)
End of Line
+ −
Add to wish list

MFA Como Drills RE975D5041

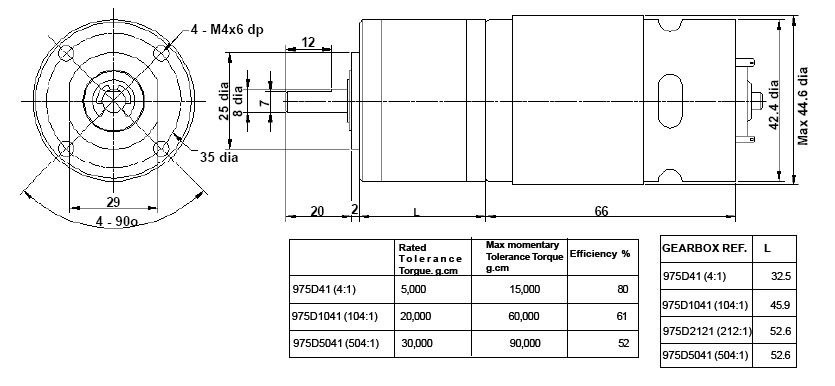

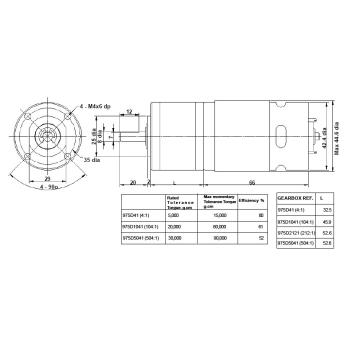

Specification
Output rpm no load at 12V 14
Output rpm at max efficiency at 12V 11.31
Voltage range 6-12V
No load current 0.9A
Efficiency 63%
Current at max efficiency 5.5A
Output continuous torque 2.94Nm
Maximum momentary 8.83Nm
Diameter 45mm
Overall length 130mm

Note: Output shaft 8mm diameter, 18mm long, 12mm flat 1mm deep.
