940D51LN Low Noise High Torque Planetary Geared Motor 5:1

£19.06
(£22.87 UK, incl VAT)
Price in points: 3812 points
1450-455
282 g
In Stock
+
Add to wish list

Designed for heavier duty industrial and modelling applications. These units boast a high quality five pole low rpm motor providing approx 45% more motor torque than the standard RE385 motor with a considerable reduction in motor noise level. The metal gearbox incorporates sleeve bearings, enabling the high torque transfer from the motor to be transmitted through the gearbox. The 721:1 ratio version has a ballraced output bearing.

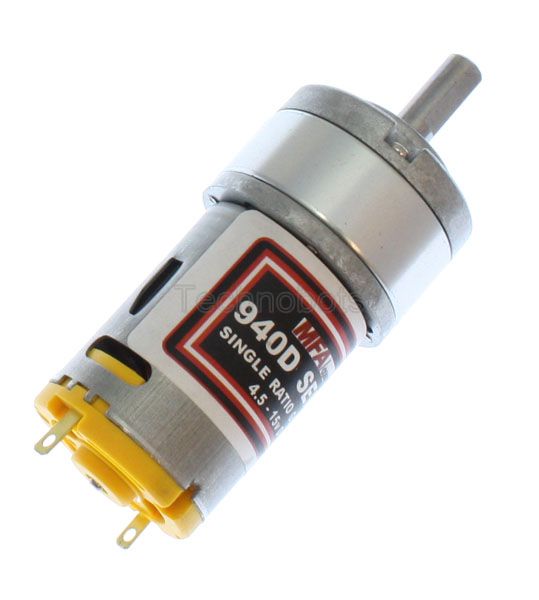

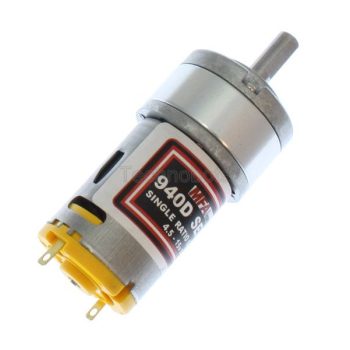

MFA Como Drills 940D51LN geared motor with a 5:1 gearbox

Output rpm at:

4.5V = 485
6V = 651
9V = 993
12V = 1340
15V = 1674
Output theoretical torque (gcm) at 12V, max efficiency = 456



Motor specification (before gearbox reduction)

Model
Voltage
NO LOAD
AT MAXIMUM EFFICIENCY
STALL
TORQUE
OPERATING
RANGE
NOMINAL
SPEED
Amps
SPEED
Amps
TORQUE
O/P
EFF
RPM
A
RPM
A
oz - in
g - cm
W
%
oz - in
g - cm
RE - 385LN
6.0 - 12.0
12v CONSTANT
7300
0.15
5950
0.9
-
110
7
65
-
660
