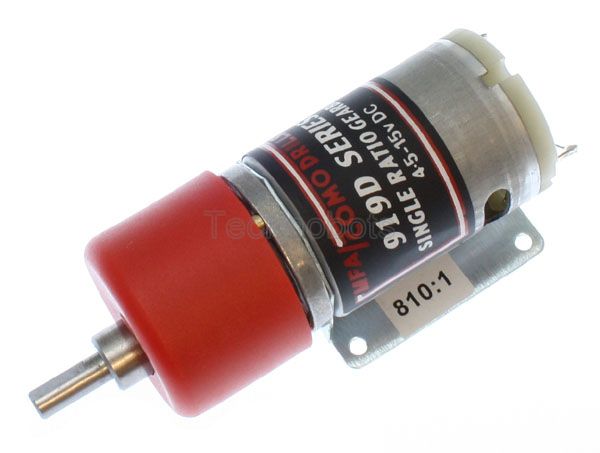

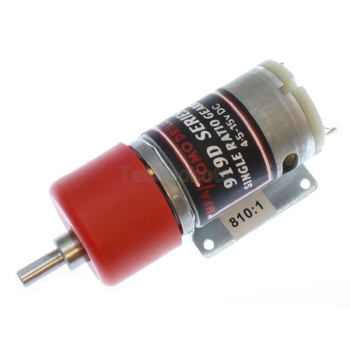

919D8101 RE 540/1 Metal Geared Motor 810:1

£18.96
(£22.75 UK, incl VAT)
Price in points: 3792 points
1450-055
255 g
In Stock
+ −
Add to wish list

MFA Como Drills 919D8101

Output @ 4.5V 8rpm
Output @ 6V 10rpm, 95742g/cm at max efficiency, stall torque 542700g/cm
Output @ 9V 15rpm
Output @ 12V 20rpm 125064g/cm at max efficiency, stall torque 810000g/cm
Output @ 15V 25rpm
Note: Figures are theoretical for motor and gearbox combination



1450-050 to 056 & 240 to 246 Motor Performance
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
6.0 0.45 0 7500   No Load
6.0 2.1 118.2 6180 59.4 max 7.49
6.0   670 Stall 0   0
12.0 0.52 0 15800   No Load
12.0 2.85 154.4 13360 61.9 max 21.2
12.0   1000 Stall 0   0

.
