918D100112/1 RE 280/1 4mm Metal Geared Motor 100:1

Write a review
£9.42
(£11.30 UK, incl VAT)
Price in points: 1884 points
1450-043
72 g
In stock
+ −
Add to wish list

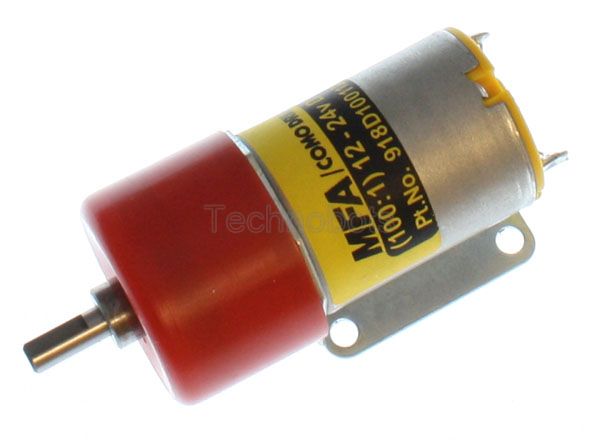

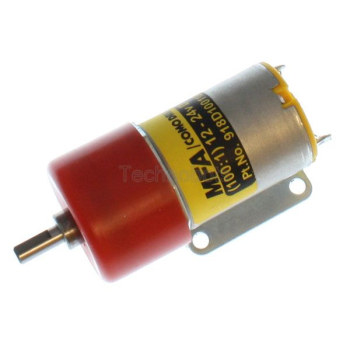

MFA Como Drills 918D100112/1

  • Output @ 6V 42rpm
  • Output @ 12V 84rpm, 2500g/cm at max efficiency, stall torque 10000g/cm
  • Output @ 18V 126rpm
  • Output @ 24V 168rpm

Figures are theoretical for motor and gearbox combination. Output shaft is 4mm.



1450-040 / 41 / 42 / 43 / 44 Re 280/1 Motor Performance
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
12 0.1 0 8400   No Load
12 0.3 25.0 6300 44.87 max 1.62
12   100.0 Stall 0   0

No posts found

Write a review

Hi, I want to buy 4 918D 100:1 dc motor. So.. I have a few questions. Can you ship it to Korea? If possible, how long will it take? What will be its shipping charges for Korea??

Asked by Tt | 25/03/2022, 06:48 | 1 answer(s)

I saw earlier that it would not be delivered to Pakistan. I'd like to buy this motor, but I'm in Korea. Will it be delivered to Korea?

Asked by Seo | 25/03/2022, 06:37 | 1 answer(s)

Hi dear i am from pakistan. I want to buy 4 918D 100:1 dc motor. What will be its shipping charges for pakistan?

Asked by M Umar | 09/02/2018, 09:45 | 1 answer(s)

Do you have a mounting plate that would allow this motor to be fitted by its face rather than by its base? If not, could you advise how to fit it by its face to a plate? Thanks

Asked by Tony K | 24/01/2015, 10:10 | 3 answer(s)
