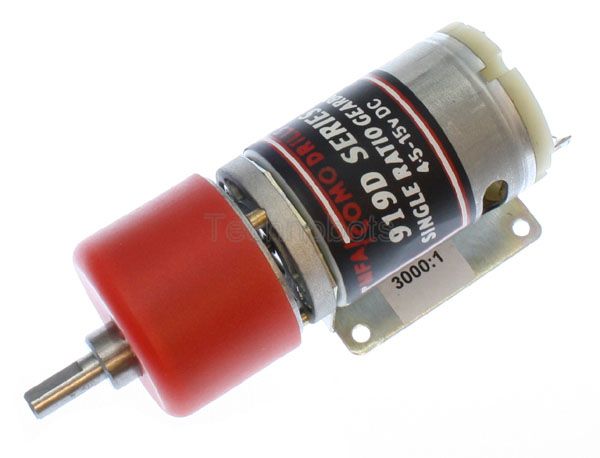

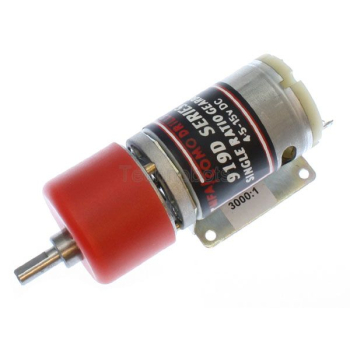

919D30001 RE 540/1 Metal Geared Motor 3000:1

£21.17
(£25.40 UK, incl VAT)
Price in points: 4234 points
1450-056
262 g
In Stock
+ −
Add to wish list

MFA Como Drills 919D30001

Output @ 4.5V 1.5rpm
Output @ 6V 2rpm, 354600g/cm at max efficiency, stall torque 2010000g/cm
Output @ 9V 3rpm
Output @ 12V 5rpm 463200g/cm at max efficiency, stall torque 3000000g/cm
Output @ 15V 6rpm
Figures are theoretical for motor and gearbox combination



1450-050 to 056 & 240 to 246 Motor Performance
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
6.0 0.45 0 7500   No Load
6.0 2.1 118.2 6180 59.4 max 7.49
6.0   670 Stall 0   0
12.0 0.52 0 15800   No Load
12.0 2.85 154.4 13360 61.9 max 21.2
12.0   1000 Stall 0   0
