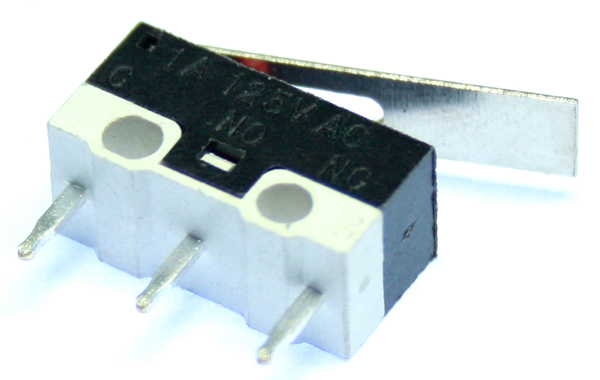

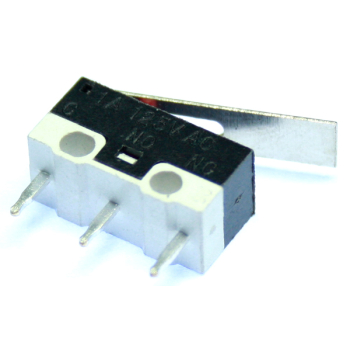

1A Subminiature 16mm Lever Microswitch

List price: £0.36
£0.11
(£0.13 UK, incl VAT) You save: £0.25 (69%)
Price in points: 22 points
1610-031
1 g
Out of stock
End of Line

Minimum quantity for "1A Subminiature 16mm Lever Microswitch" is 3.

Add to wish list

The smallest body size of our microswitches, these subminiatures are similar to the V5 standard. Rated at 1A at 125Vac maximum, these are ideal for end of travel limit switches on CNC machines / 3D printers.

This microswitch has a flat lever 16mm long.

Specification

Mechanical

  1. Operating Force: 60~70gf;
  2. Life: ≥ 500,000Cycles;
  3. Pins: 3 straight Pins, ideal for PCB mounting

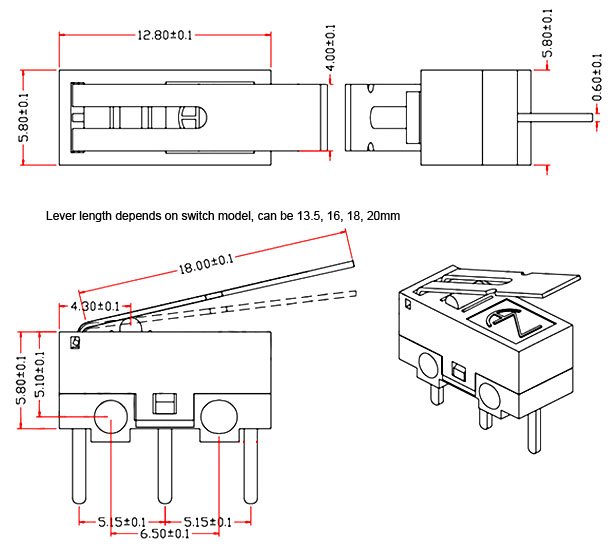

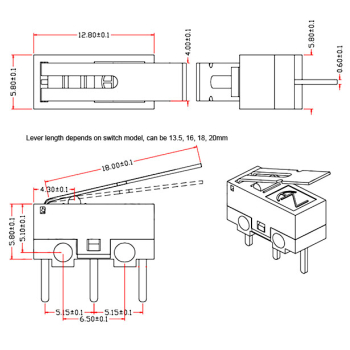

  4. Size of Body: 12.8mm x 5.8mm x 5.8mm (LxWxH);

Electrical:

  1. Rated V/I: 125VAC/1A;
  2. Contact Resistance: ≤30mΩ;
  3. Insulation Resistance: ≥100MΩ;
  4. Withstand Voltage: 250VAC for 1Min;
