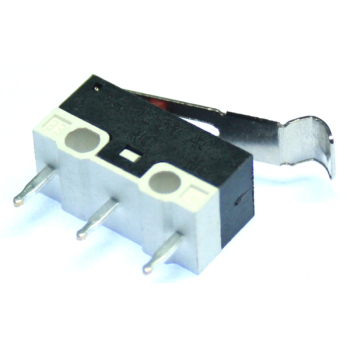

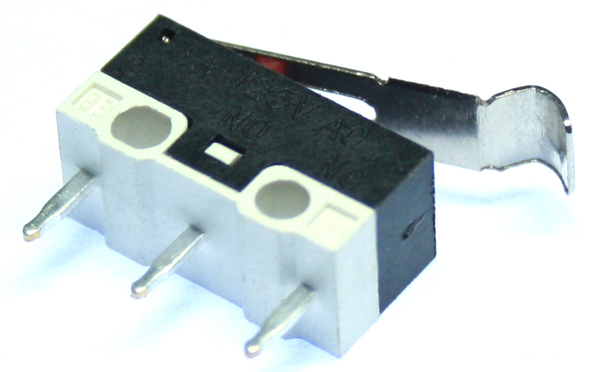

Subminiature microswitch with simulated roller lever

1A Subminiature 15mm Simulated Roller Microswitch


£0.36 incl VAT
(£0.30 exc. tax)
Price in points: 60 points
1610-034
0.70 g.
In stock
+
Add to wish list

The smallest body size of our microswitches, these subminiatures are similar to the V5 standard. Rated at 1A at 125Vac maximum, these are ideal for end of travel limit switches on CNC machines / 3D printers.

This microswitch has a lever 15mm long with formed simulated roller.

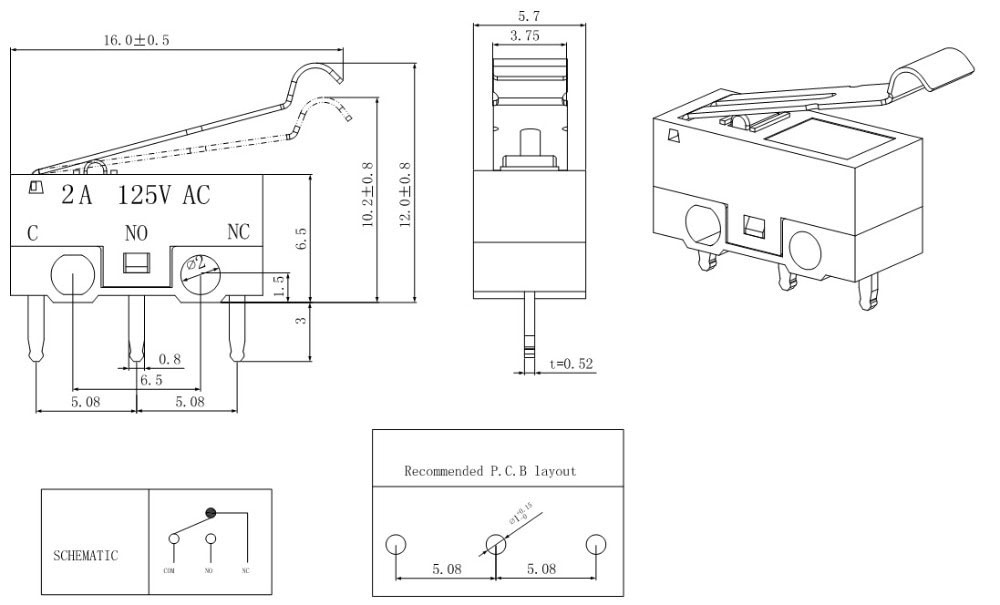

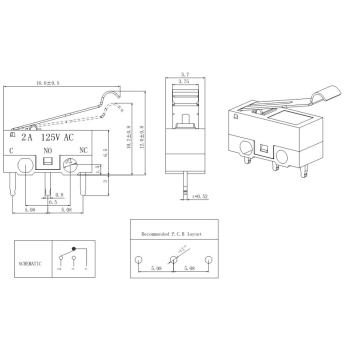

Specification

Mechanical

  1. Operating Force: 60~70gf;
  2. Life: ≥ 500,000Cycles;
  3. Pins: 3 straight Pins, ideal for PCB mounting
  4. Size of Body: 12.8mm x 5.8mm x 5.8mm (LxWxH);

Electrical:

  1. Rated V/I: 125VAC/1A;
  2. Contact Resistance: ≤30mΩ;
  3. Insulation Resistance: ≥100MΩ;
  4. Withstand Voltage: 250VAC for 1Min;
