The smallest body size of our microswitches, these subminiatures are similar to the V5 standard. Rated at 1A at 125Vac maximum.

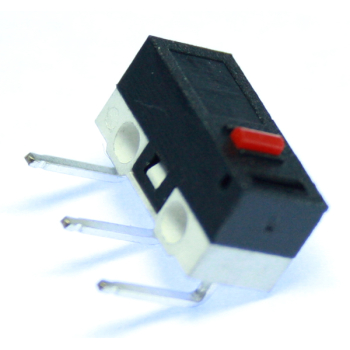

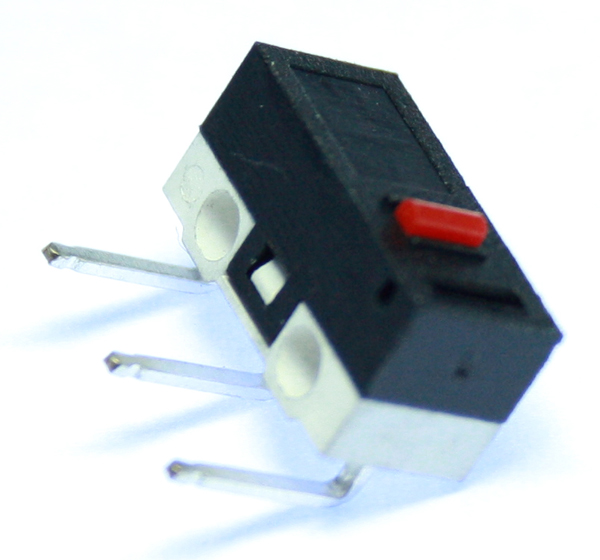

This microswitch has a button actuator, right handed PCB mounting, see photo above.
- Operating Force: 60~70gf;
- Life: ≥ 500,000Cycles;
- Pins: 3 right angle pins, ideal for PCB mounting where the switch body can be laid flat

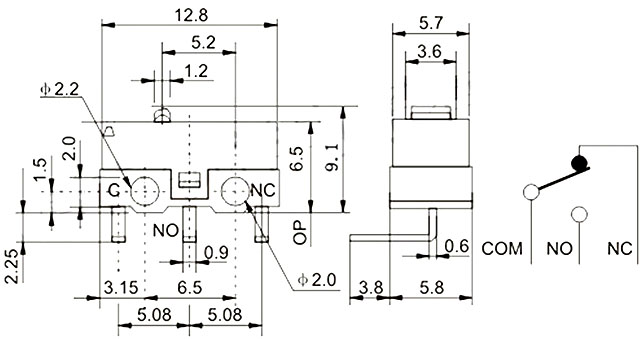

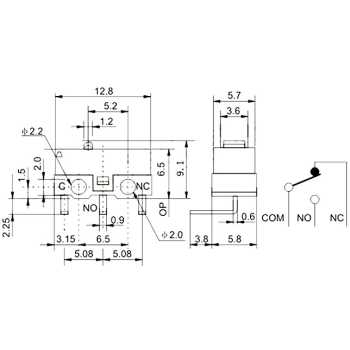

- Size of Body: 12.8mm x 5.8mm x 5.8mm (LxWxH);
- Rated V/I: 125VAC/1A;
- Contact Resistance: ≤30mΩ;
- Insulation Resistance: ≥100MΩ;
- Withstand Voltage: 250VAC for 1Min;
