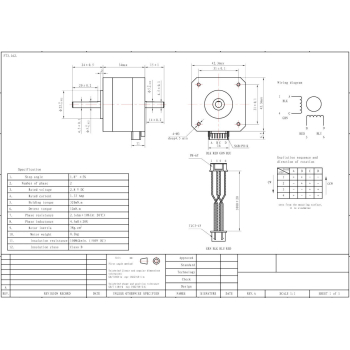

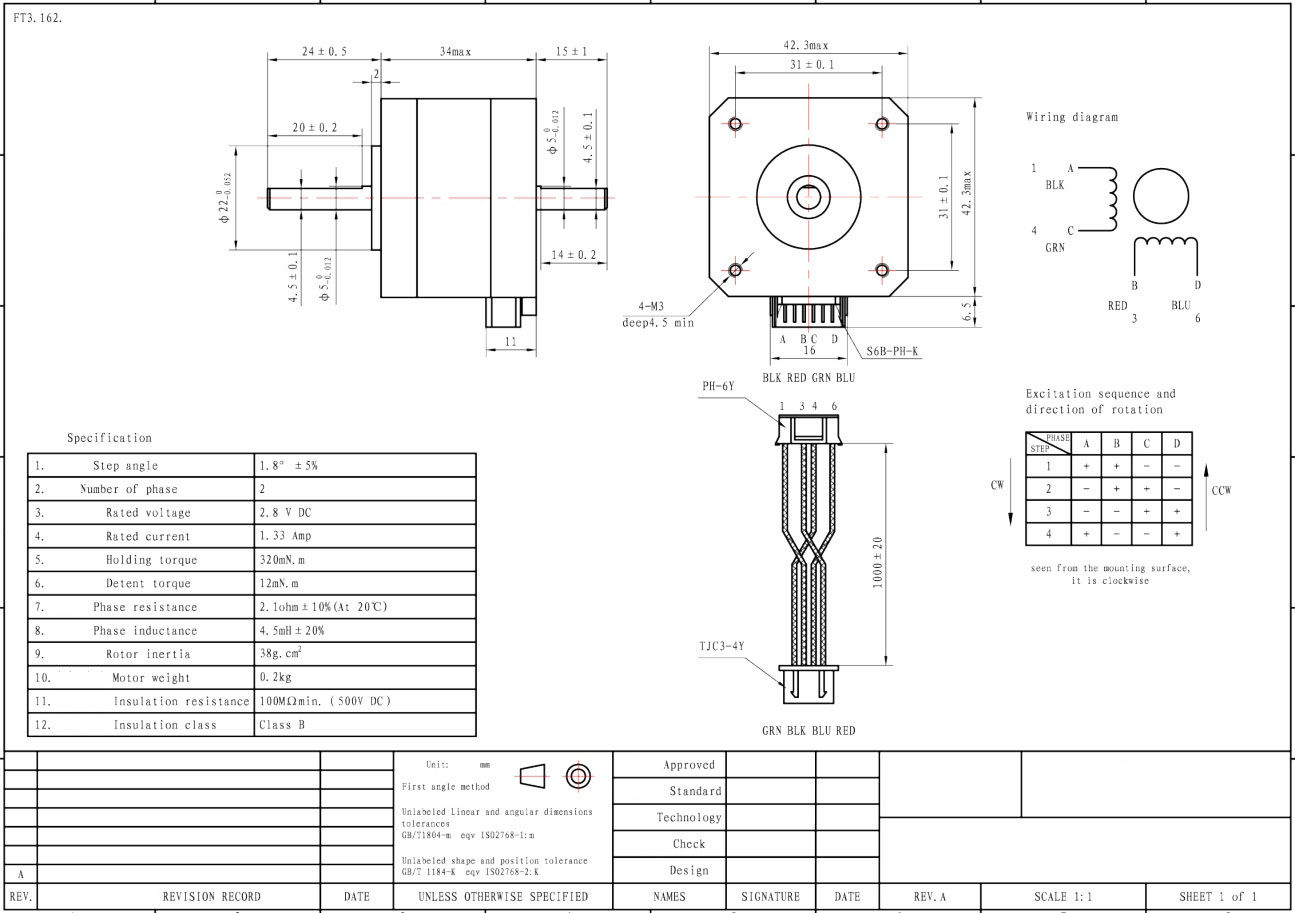

Stepper Motor Double Shaft 42STH34-1334BC, 1.33A, 4.5mH, 2.1R, 32 N.cm

£13.86
(£16.63 UK, incl VAT)
Price in points: 2772 points
6013-303
0 g
In stock
+
Add to wish list

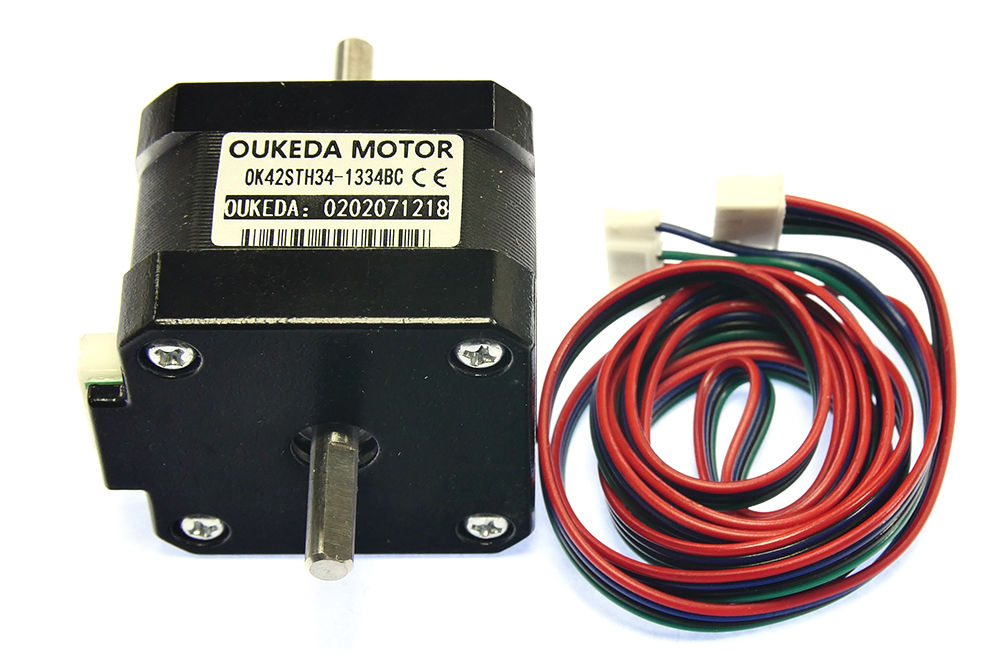

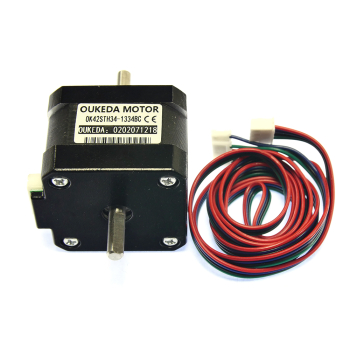

Double shaft Nema17 stepper motor

  • Step angle: 1.8 Degrees +/- 5%
  • Phases: 2
  • rated Voltage: 2.8V
  • rated Current: 1.33A
  • Holding Torque: 320mN.m
  • Detent Torque: 12mN.m
  • Phase Resistance: 2.1R +/-10% at 20 Deg C
  • Phase Inductance: 4.5mH +/- 20%
  • Rotor Inertia: 38g.cm²
  • Motor Weight: 240g
