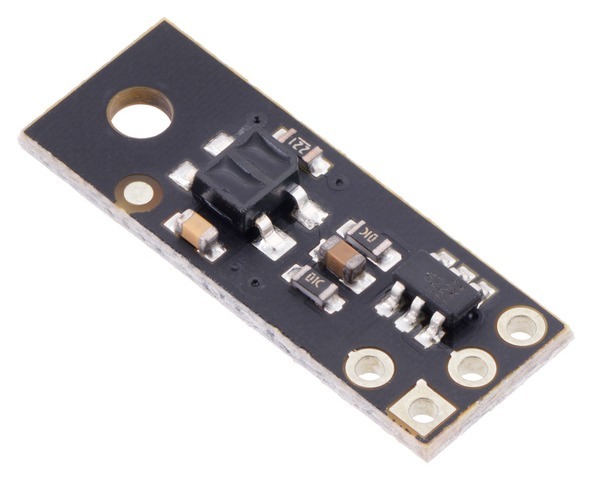

Reflectance Sensor QTR-MD-01RC, 1 Channel, 8mm Pitch, RC (Digital) Output

Reflectance Sensor QTR-MD-01RC, 1 Channel, 8mm Pitch, RC (Digital) Output


£1.50 incl VAT
(£1.25 exc. tax)
Price in points: 250 points
3801-610
1.00 g.
In stock
+
Add to wish list

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features a traditional-style QTR sensor without lenses.

sensors size
(mm)
output max current optimal
range
LED board
1 7.5 × 20.0 RC (digital) 30 mA 32 mA 5 mm

For further technical information, please see the main product page here
