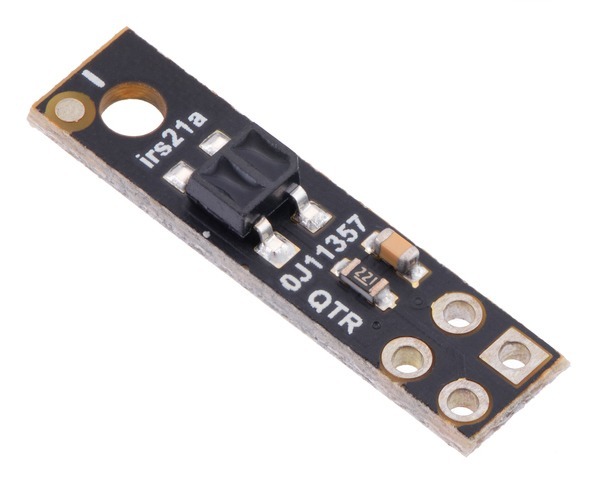

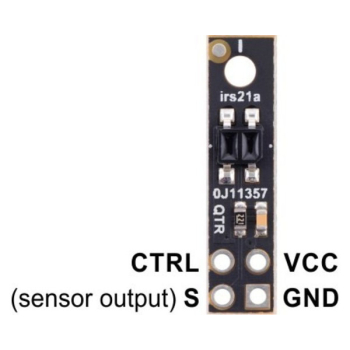

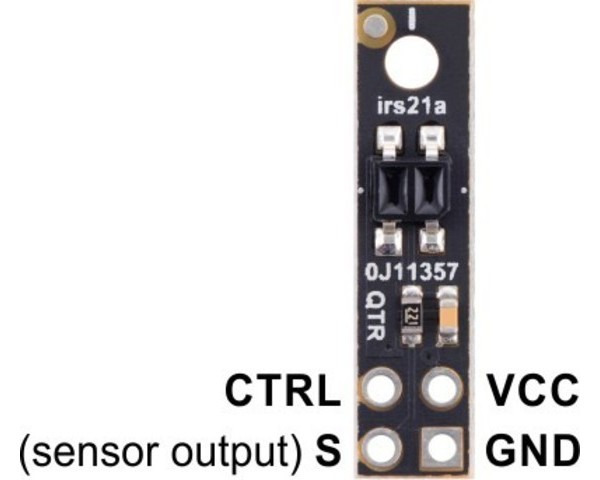

Reflectance Sensor QTR-HD-01RC, 1 Channel, 4mm Pitch, RC (Digital) Output

(£1.82 incl VAT)
Price in points: 304 points
In stock

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features a traditional-style QTR sensor without lenses.

sensors size
output max current optimal
LED board
1 5.0 × 20.0 RC (digital) 30 mA 32 mA 5 mm

For further technical information, please see the main product page here
