Save 28%

Reflectance Sensor QTR-HD-01A, 1 Channel, 4mm Pitch, Analogue Output

List price: £2.08
£1.49
(£1.79 UK, incl VAT) You save: £0.59 (28%)
Price in points: 298 points
3801-620
1 g
1 item(s)
End of Line
+
Add to wish list

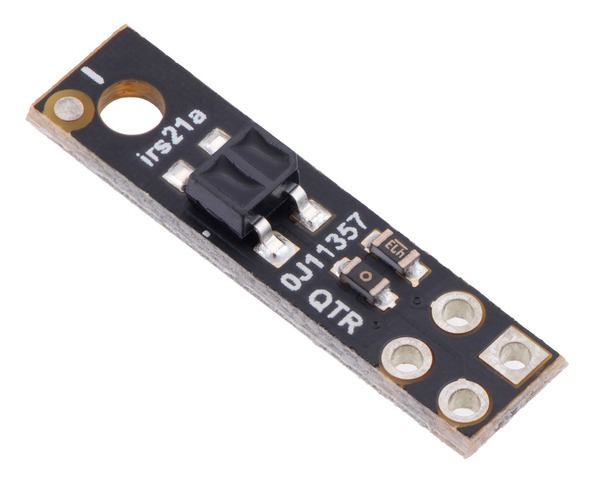

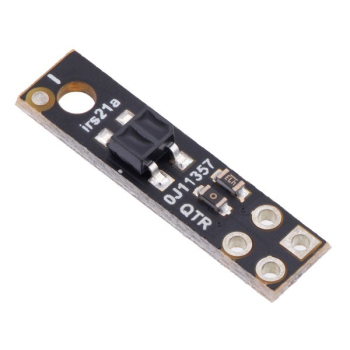

This IR LED/phototransistor pair is great for precisely identifying changes in reflectance (like line detection). It operates from 2.9 V to 5.5 V and offers dimmable brightness control independent of the supply voltage. In general, the closer the object, the higher the contrast between light and dark readings, but high-reflectance objects are generally detectable out to around 30 mm. This version features a traditional-style QTR sensor without lenses.

sensors size
(mm)
output max current optimal
range
LED board
1 5.0 × 20.0 analog 30 mA 32 mA 5 mm

For further technical information, please see the main product page here
