Pololu 100:1 Micro Metal Gearmotor HPCB 12V

(£14.86 UK, incl VAT)
Price in points: 2476 points
10 g
In stock

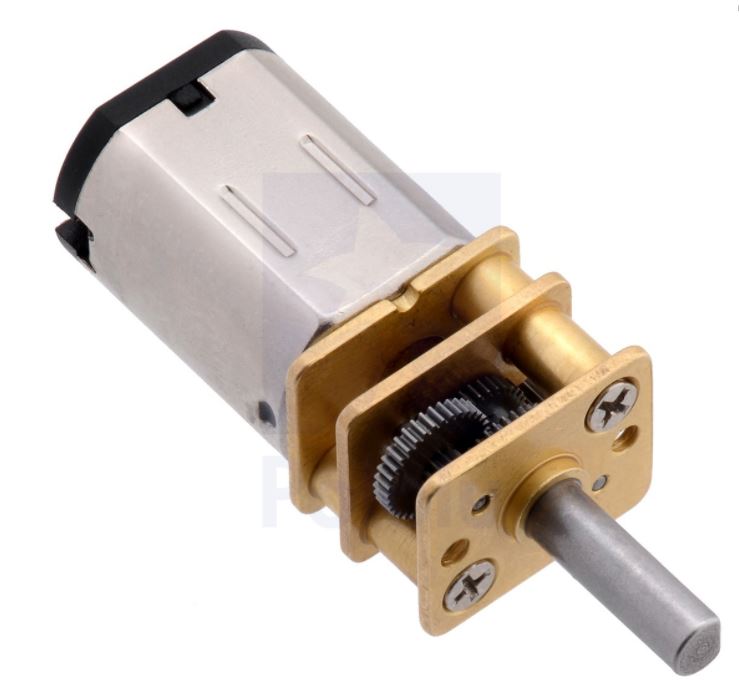

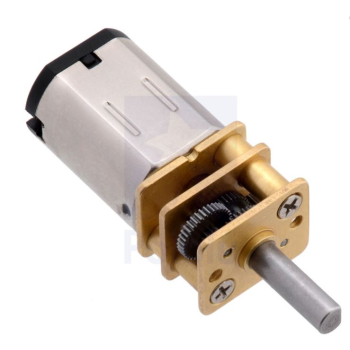

This gearmotor is a miniature high-power, 12V brushed DC motor with long-life carbon brushes and a 100.37:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Key specs at 12V: 330 RPM and 60 mA free-run, 1.3kg.cm (18 oz-in) and 0.75A stall.

The HPCB versions (shown on the left) can be differentiated from versions with precious metal brushes (shown on the right) by their copper-colored terminals. Note that the HPCB terminals are 0.5 mm wider than those on the other micro metal gearmotor versions (2 mm vs. 1.5 mm), and they are about 1 mm closer together (6 mm vs. 7 mm).

 HPCB Motors


With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.
