From our Makertronics branded range of products at Everyday Low Prices.
A pillow style aluminium mount for round guide rails of 10mm diameter as typically used for CNC linear bearings.

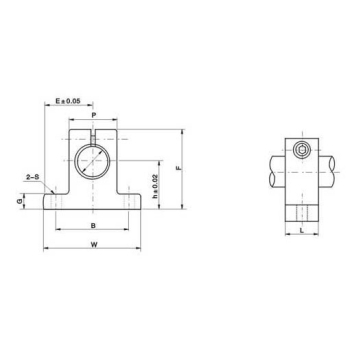

See image for the dimensions drawing:
- Shaft Diameter: 10mm
- h: 20mm
- E: 21mm
- W: 42mm
- L: 14mm
- F: 37.5mm
- G: 6mm
- P: 18mm
- B: 32mm
- S: 5.5mm
- Clamp Bolt: M4
- Mounting Bolt (not included): M5
