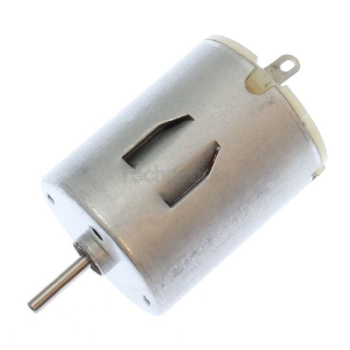

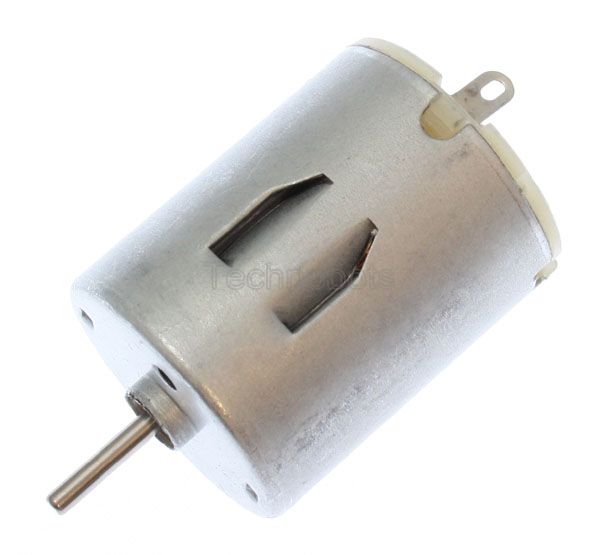

Model Motor Size D

Write a review
£0.83
(£1.00 UK, incl VAT)
Price in points: 166 points
1400-023
42 g
Out of stock
+ −
Add to wish list

Also known as a MM28



Specifications
Voltage Range:1.5V to 6V
Rated Voltage:3V
Rated Power:1.58W
No Load Current:0.25A
Rated Load Current:1.14A
Rated Load Speed:7,790 RPM
Torque:19.9 g/cm
Stall Torque:110g/cm
Stall Current:5.2A
Body Diameter:24mm
Body Length:30.5mm
Spindle Length:10mm
Spindle Diameter:2mm

Downloads

No posts found

Write a review

I have just bought some motors off you one of which size D should be mounted by two threaded holes at 14mm centres according to your drawing. Thread size is unclear. The motor as supplied has two plain holes diameter 2.4mm and requires the case to be opened in order to insert some internal plate or nuts for mounting. Is this correct?

Asked by graham porcas | 23/07/2015, 15:34 | 1 answer(s)

What size machine screws do i need to fit this motors fixing holes?

Asked by richard | 14/09/2014, 18:08 | 1 answer(s)

Hi, What is the wattage output of this motor? Also what is the input current? Thanks

Asked by Mark | 26/04/2013, 16:49 | 1 answer(s)
