MOD1 Economy Plastic Gear Set 1

MOD1 Economy Plastic Gear Set 1


£0.95 incl VAT
(£0.79 exc. tax)
Price in points: 158 points
4600-150
9.00 g.
In stock
+
Our quantity discounts:
Quantity 10+ 100+
Price £0.71 £0.63
Add to wish list
Now we were quite surpised at the quality of these gears and they are quite suitable for general model making.

Note colour supplied may vary from that shown (4 assorted colours stocked)
Interference fit for a 4mm shaft.

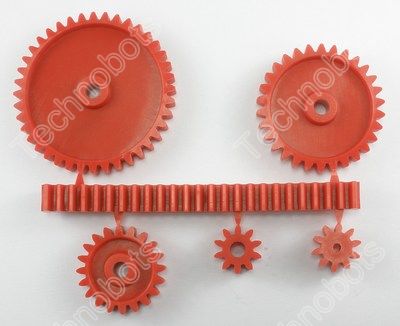

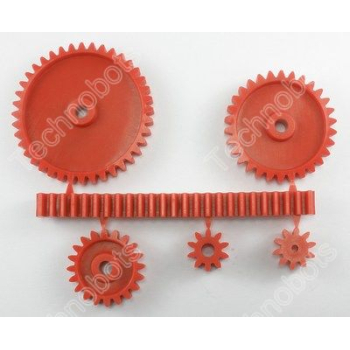

Diameters: 10, 22, 32, 42mm
Teeth, 10, 10, 20, 30 & 40

Also includes a MOD 1 rack.

Downloads

No posts found

Write a review

Just bought these gears to try. On visual inspection these are seriously top quality gears with no mould sinkage anywhere except a slight one on the side the rack gear. Dimensions on 4600-150-4,pdf seem to be to tolerance of +0.0/-0.1 Gear width is 5.9 - 6.0mm except rack gear at 6.5mm. Maxlength of rack is 78mm not 76mm T20, T30 & T40 is recessed at between diameters of 8.5mm and 15mm(T20), 25mm(T30), 34.5mm(T40) Recessed section is 1.9-2.0 thick. Shaft boss has diam of 8.5mm but is about 0.1mm shorter than gear width. I'll post torque tolerance when I get to test them.

Asked by TN | 07/04/2014, 00:22 | 1 answer(s)

Please can you tell me what width the gears are (both the facewidth of the gear as well as the total width of the parts)? I'm particularly interested in the 30T gear. Many thanks, John

Asked by John | 05/09/2012, 08:11 | 1 answer(s)
