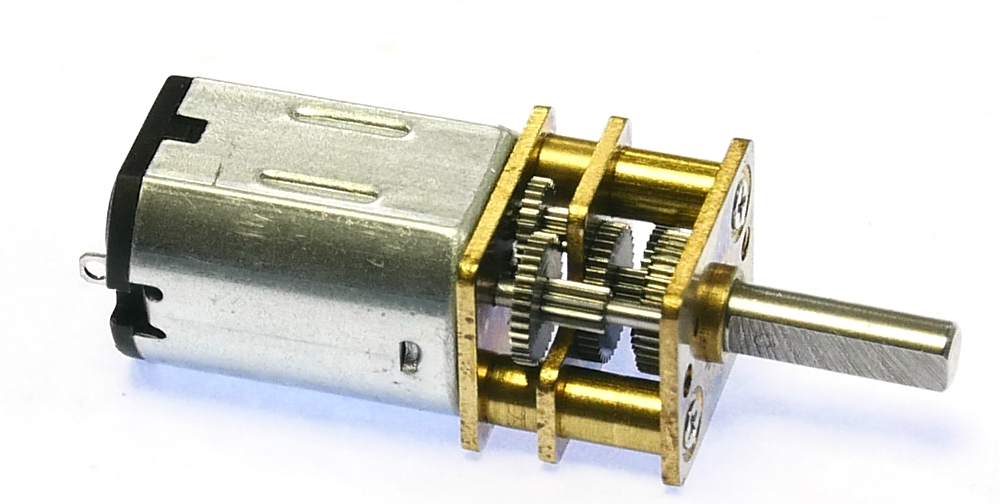

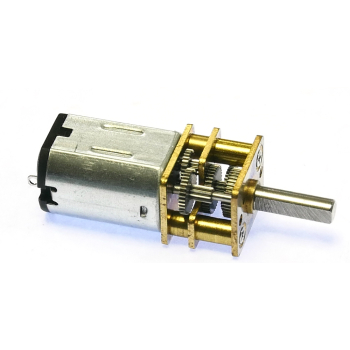

Makertronics 6V 50 RPM N20 Micro Metal Gear Motor

£4.68
(£5.62 UK, incl VAT)
Price in points: 936 points
6010-062
10 g
In Stock
+ −
Add to wish list

From our Makertronics branded range of products at Everyday Low Prices.

GA12 N20 Micro metal geared motors available in various ratios giving nominal output speeds of 15 to 1000 rpm.

  • Voltage: 6V (3V to 9V)
  • Approximate No Load Output Speed: 50 rpm
  • No Load Current: <30mA
  • Approximate Rated Load Output speed: 40 rpm
  • Rated Current: 40mA
  • Stall Current @ 6V: 400mA
  • Shaft: 'D' profile,  3mm x 9mm

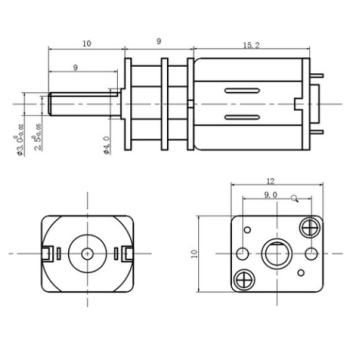

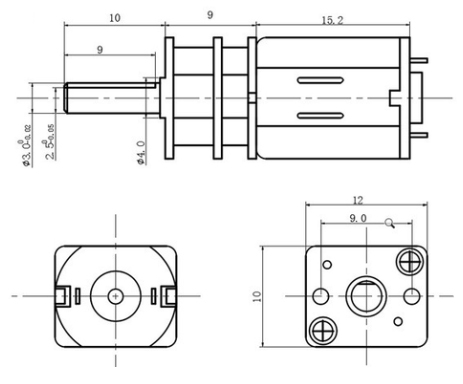

  • Size: 10mm x 12mm x 27mm (excluding shaft)
