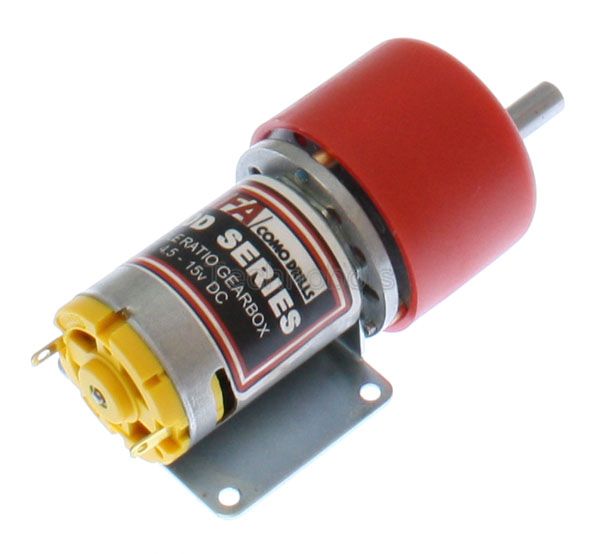

950D8101 RE 385 Metal Geared Motor 810:1

£17.42
(£20.90 UK, incl VAT)
Price in points: 3485 points
1450-105
164 g
In Stock
+
Add to wish list

MFA Como Drill 950D8101

Output rpm at:

4.5V = 5
6V = 7
9V = 11
12V = 15
15V = 18
Output theoretical torque (g/cm) at 12V, max efficiency = 52893, stall torque 338256



1450-100 to 106 Motor Performance (Note: 1450-107 to 113 Similar)
Nominal Voltage Current (A) Torque (g/cm) Speed (rpm) Efficiency (%) O/P Power (W)
12 0.155 0 11000   No Load
12 0.837 65.3 9821 61.85 max 6.21
12   417.6 Stall 0   0
